Tuya _TZE204_7lb6j8wg
| Model | _TZE204_7lb6j8wg |
| Vendor | Tuya |
| Description | Semicom touch panel: 3 shutters |
| Exposes | cover (state, position), state |

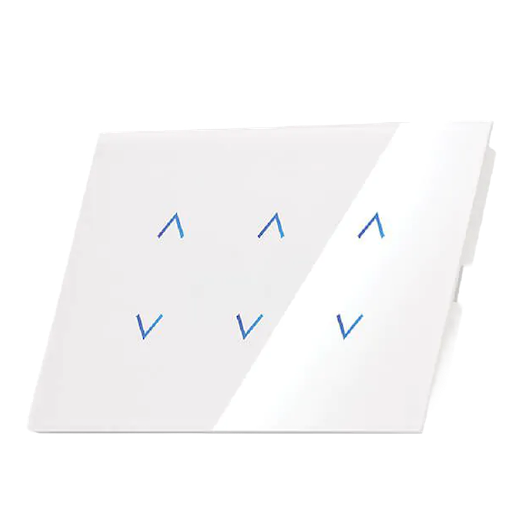

| Picture |  |
Options
How to use device type specific configuration
invert_cover: Inverts the cover position and state, false: open=100,close=0, true: open=0,close=100 (default false). The value must betrueorfalsetime_start: Reply to Tuya-specific time synchronization requests: "1970" - Reply with seconds since 1970/01/01 (recommended, should stop the device from asking), "2000" - Reply with seconds since 2000/01/01 (use if the weekday is wrong with 1970), "off" - Don't reply (use if replying causes too much traffic). Default for this device: "off". The value must be one of1970,2000,off
Exposes
Cover (c1 endpoint)
The current state of this cover is in the published state under the state_c1 property (value is OPEN or CLOSE). To control this cover publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_c1": "OPEN"}, {"state_c1": "CLOSE"}, {"state_c1": "STOP"}. It's not possible to read (/get) this value. To change the position publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"position_c1": VALUE} where VALUE is a number between 0 and 100.
Cover (c2 endpoint)
The current state of this cover is in the published state under the state_c2 property (value is OPEN or CLOSE). To control this cover publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_c2": "OPEN"}, {"state_c2": "CLOSE"}, {"state_c2": "STOP"}. It's not possible to read (/get) this value. To change the position publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"position_c2": VALUE} where VALUE is a number between 0 and 100.
Cover (c3 endpoint)
The current state of this cover is in the published state under the state_c3 property (value is OPEN or CLOSE). To control this cover publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_c3": "OPEN"}, {"state_c3": "CLOSE"}, {"state_c3": "STOP"}. It's not possible to read (/get) this value. To change the position publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"position_c3": VALUE} where VALUE is a number between 0 and 100.
State (enum, c1 endpoint)
Value can be found in the published state on the state_c1 property. It's not possible to read (/get) or write (/set) this value. The possible values are: OPEN, STOP, CLOSE.
State (enum, c2 endpoint)
Value can be found in the published state on the state_c2 property. It's not possible to read (/get) or write (/set) this value. The possible values are: OPEN, STOP, CLOSE.
State (enum, c3 endpoint)
Value can be found in the published state on the state_c3 property. It's not possible to read (/get) or write (/set) this value. The possible values are: OPEN, STOP, CLOSE.
