Moes TV01-ZB

ModelTV01-ZB
VendorMoes
DescriptionThermostat radiator valve
Exposesbattery, lock (state), switch (state), frost_detection, heating_stop, holiday_temperature, comfort_temperature, eco_temperature, open_window_temperature, boost_heating_countdown, error_status, climate (current_heating_setpoint, local_temperature, local_temperature_calibration, system_mode, preset), linkquality

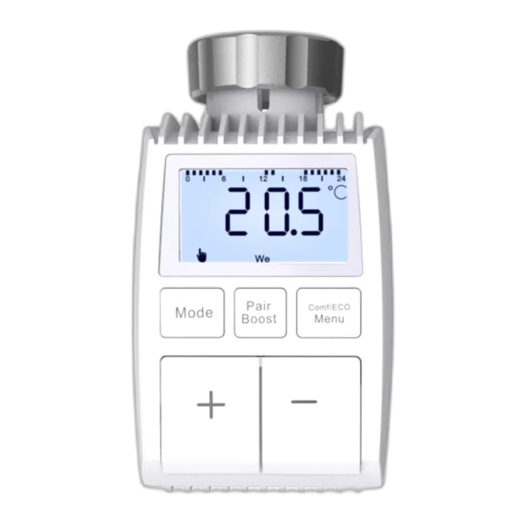

PictureMoes TV01-ZB

Exposes

Battery (numeric)

Remaining battery in %. Value can be found in the published state on the battery property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Lock

The current state of this lock is in the published state under the child_lock property (value is LOCK or UNLOCK). To control this lock publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"child_lock": "LOCK"} or {"child_lock": "UNLOCK"}. It's not possible to read (/get) this value.

Switch

The current state of this switch is in the published state under the window_detection property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"window_detection": "ON"}, {"window_detection": "OFF"} or {"window_detection": "TOGGLE"}. It's not possible to read (/get) this value.

Frost_detection (binary)

Enables/disables frost detection on the device. Value can be found in the published state on the frost_detection property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"frost_detection": NEW_VALUE}. If value equals true frost_detection is ON, if false OFF.

Heating_stop (binary)

Stop heating. Value can be found in the published state on the heating_stop property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"heating_stop": NEW_VALUE}. If value equals true heating_stop is ON, if false OFF.

Holiday_temperature (numeric)

Holiday mode temperature. Value can be found in the published state on the holiday_temperature property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"holiday_temperature": NEW_VALUE}.

Comfort_temperature (numeric)

Comfort mode temperature. Value can be found in the published state on the comfort_temperature property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"comfort_temperature": NEW_VALUE}.

Eco_temperature (numeric)

Eco mode temperature. Value can be found in the published state on the eco_temperature property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"eco_temperature": NEW_VALUE}.

Open_window_temperature (numeric)

Open window mode temperature. Value can be found in the published state on the open_window_temperature property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"open_window_temperature": NEW_VALUE}.

Boost_heating_countdown (numeric)

Boost heating countdown. Value can be found in the published state on the boost_heating_countdown property. It's not possible to read (/get) or write (/set) this value.

Error_status (numeric)

Error status. Value can be found in the published state on the error_status property. It's not possible to read (/get) or write (/set) this value.

Climate

This climate device supports the following features: current_heating_setpoint, local_temperature, local_temperature_calibration, system_mode, preset.

  • current_heating_setpoint: Temperature setpoint. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"current_heating_setpoint": VALUE} where VALUE is the °C between 5 and 29.5. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"current_heating_setpoint": ""}.
  • local_temperature: Current temperature measured on the device (in °C). Reading (/get) this attribute is not possible.
  • system_mode: Mode of this device. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"system_mode": VALUE} where VALUE is one of: off, heat, auto. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"system_mode": ""}.
  • preset: Mode of this device (similar to system_mode). To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"preset": VALUE} where VALUE is one of: auto, manual, holiday. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"preset": ""}.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
