Tuya TS0601_water_valve_1

ModelTS0601_water_valve_1
VendorTuya
DescriptionWater valve
Exposesswitch (state), position, position_current

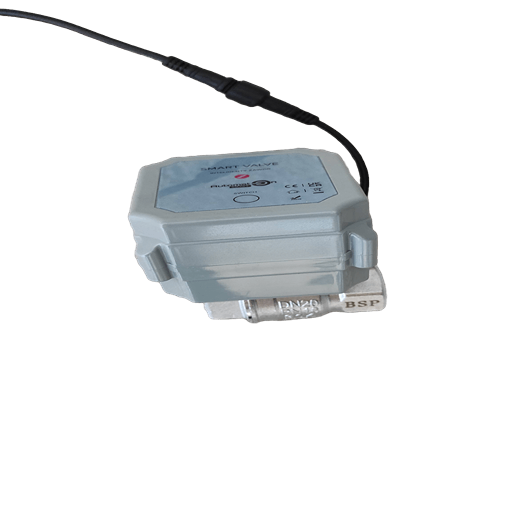

PictureTuya TS0601_water_valve_1

Options

How to use device type specific configuration

  • time_start: Reply to Tuya-specific time synchronization requests: "1970" - Reply with seconds since 1970/01/01 (recommended, should stop the device from asking), "2000" - Reply with seconds since 2000/01/01 (use if the weekday is wrong with 1970), "off" - Don't reply (use if replying causes too much traffic). Default for this device: "off". The value must be one of 1970, 2000, off

Exposes

Switch

The current state of this switch is in the published state under the state property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "ON"}, {"state": "OFF"} or {"state": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state": ""}.

Position (numeric)

Target valve position. Value can be found in the published state on the position property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"position": NEW_VALUE}. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Position current (numeric)

Current valve position (feedback, steps of 10%). Value can be found in the published state on the position_current property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.
