TuYa TS0601_switch_12
| Model | TS0601_switch_12 |
| Vendor | TuYa |
| Description | ZXYH 12 gang switch |
| Exposes | switch (state), linkquality |

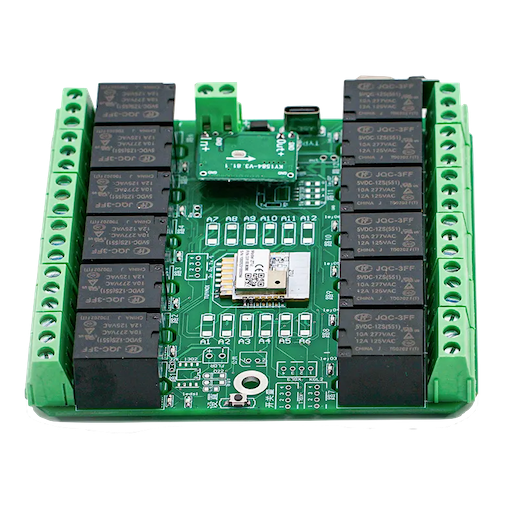

| Picture |  |
Exposes
Switch (l1 endpoint)
The current state of this switch is in the published state under the state_l1 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l1": "ON"}, {"state_l1": "OFF"} or {"state_l1": "TOGGLE"}. It's not possible to read (/get) this value.
Switch (l2 endpoint)
The current state of this switch is in the published state under the state_l2 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l2": "ON"}, {"state_l2": "OFF"} or {"state_l2": "TOGGLE"}. It's not possible to read (/get) this value.
Switch (l3 endpoint)
The current state of this switch is in the published state under the state_l3 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l3": "ON"}, {"state_l3": "OFF"} or {"state_l3": "TOGGLE"}. It's not possible to read (/get) this value.
Switch (l4 endpoint)
The current state of this switch is in the published state under the state_l4 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l4": "ON"}, {"state_l4": "OFF"} or {"state_l4": "TOGGLE"}. It's not possible to read (/get) this value.
Switch (l5 endpoint)
The current state of this switch is in the published state under the state_l5 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l5": "ON"}, {"state_l5": "OFF"} or {"state_l5": "TOGGLE"}. It's not possible to read (/get) this value.
Switch (l6 endpoint)
The current state of this switch is in the published state under the state_l6 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l6": "ON"}, {"state_l6": "OFF"} or {"state_l6": "TOGGLE"}. It's not possible to read (/get) this value.
Switch (l7 endpoint)
The current state of this switch is in the published state under the state_l7 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l7": "ON"}, {"state_l7": "OFF"} or {"state_l7": "TOGGLE"}. It's not possible to read (/get) this value.
Switch (l8 endpoint)
The current state of this switch is in the published state under the state_l8 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l8": "ON"}, {"state_l8": "OFF"} or {"state_l8": "TOGGLE"}. It's not possible to read (/get) this value.
Switch (l9 endpoint)
The current state of this switch is in the published state under the state_l9 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l9": "ON"}, {"state_l9": "OFF"} or {"state_l9": "TOGGLE"}. It's not possible to read (/get) this value.
Switch (l10 endpoint)
The current state of this switch is in the published state under the state_l10 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l10": "ON"}, {"state_l10": "OFF"} or {"state_l10": "TOGGLE"}. It's not possible to read (/get) this value.
Switch (l11 endpoint)
The current state of this switch is in the published state under the state_l11 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l11": "ON"}, {"state_l11": "OFF"} or {"state_l11": "TOGGLE"}. It's not possible to read (/get) this value.
Switch (l12 endpoint)
The current state of this switch is in the published state under the state_l12 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l12": "ON"}, {"state_l12": "OFF"} or {"state_l12": "TOGGLE"}. It's not possible to read (/get) this value.
Linkquality (numeric)
Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
