Tuya TS0601_smoke_5

ModelTS0601_smoke_5
VendorTuya
DescriptionSmoke sensor
Exposessmoke, tamper, battery, fault_alarm, silence, alarm

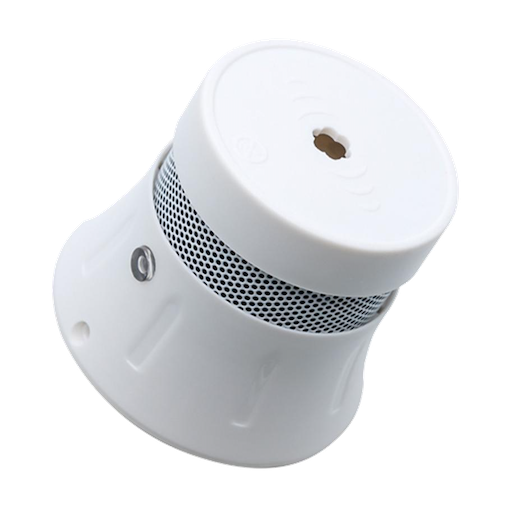

PictureTuya TS0601_smoke_5

Options

How to use device type specific configuration

  • time_start: Reply to Tuya-specific time synchronization requests: "1970" - Reply with seconds since 1970/01/01 (recommended, should stop the device from asking), "2000" - Reply with seconds since 2000/01/01 (use if the weekday is wrong with 1970), "off" - Don't reply (use if replying causes too much traffic). Default for this device: "off". The value must be one of 1970, 2000, off

Exposes

Smoke (binary)

Indicates whether the device detected smoke. Value can be found in the published state on the smoke property. It's not possible to read (/get) or write (/set) this value. If value equals true smoke is ON, if false OFF.

Tamper (binary)

Indicates whether the device is tampered. Value can be found in the published state on the tamper property. It's not possible to read (/get) or write (/set) this value. If value equals true tamper is ON, if false OFF.

Battery (numeric)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Fault alarm (binary)

Indicates whether a fault was detected. Value can be found in the published state on the fault_alarm property. It's not possible to read (/get) or write (/set) this value. If value equals true fault alarm is ON, if false OFF.

Silence (binary)

Silence the alarm. Value can be found in the published state on the silence property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"silence": NEW_VALUE}. If value equals true silence is ON, if false OFF.

Alarm (binary)

Enable the alarm. Value can be found in the published state on the alarm property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"alarm": NEW_VALUE}. If value equals ON alarm is ON, if OFF OFF.
