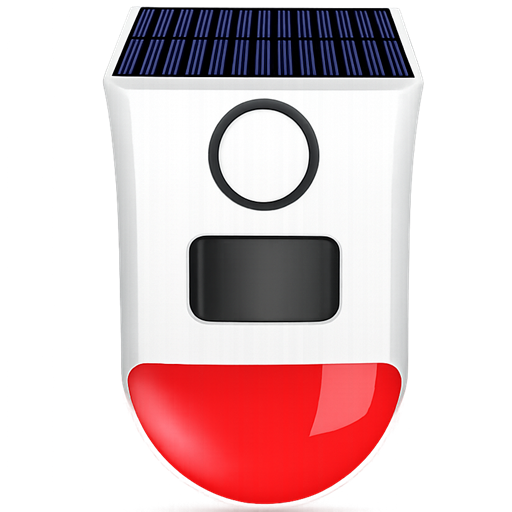

Tuya TS0601_pir_solar
| Model | TS0601_pir_solar |
| Vendor | Tuya |
| Description | Solar PIR occupancy sensor |
| Exposes | occupancy, pir_sensitivity, alarm_time, alarm_mode, battery |
| Picture |  |
Options
How to use device type specific configuration
time_start: Reply to Tuya-specific time synchronization requests: "1970" - Reply with seconds since 1970/01/01 (recommended, should stop the device from asking), "2000" - Reply with seconds since 2000/01/01 (use if the weekday is wrong with 1970), "off" - Don't reply (use if replying causes too much traffic). Default for this device: "off". The value must be one of1970,2000,off
Exposes
Occupancy (binary)
Indicates whether the device detected occupancy. Value can be found in the published state on the occupancy property. It's not possible to read (/get) or write (/set) this value. If value equals true occupancy is ON, if false OFF.
Pir sensitivity (enum)
PIR sensitivity (0=high, 1=low). Value can be found in the published state on the pir_sensitivity property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"pir_sensitivity": NEW_VALUE}. The possible values are: high, low.
Alarm time (numeric)
Alarm time. Value can be found in the published state on the alarm_time property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"alarm_time": NEW_VALUE}. The minimal value is 1 and the maximum value is 180. The unit of this value is s.
Alarm mode (enum)
Alarm work mode. Value can be found in the published state on the alarm_mode property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"alarm_mode": NEW_VALUE}. The possible values are: arm, silent, disarm.
Battery (numeric)
Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.
