Tuya TS0601_fan_dimmer_and_light_switch
| Model | TS0601_fan_dimmer_and_light_switch |
| Vendor | Tuya |
| Description | Fan Dimmer and 1 Gang Light Switch |
| Exposes | fan_speed, power_on_behavior, light_switch, indicator, child_lock, minimum_speed |

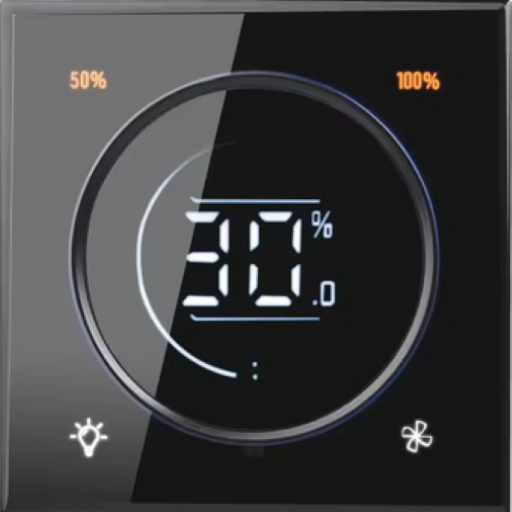

| Picture |  |
| White-label | Coswall X99-G-kbFan-1g-ZG-LN-11, Zemismart ZN2S-RS1E-FL / ZN2S-US1U-FL |
Options
How to use device type specific configuration
time_start: Reply to Tuya-specific time synchronization requests: "1970" - Reply with seconds since 1970/01/01 (recommended, should stop the device from asking), "2000" - Reply with seconds since 2000/01/01 (use if the weekday is wrong with 1970), "off" - Don't reply (use if replying causes too much traffic). Default for this device: "off". The value must be one of1970,2000,off
Exposes
Fan speed (numeric)
Speed of the fan %. Value can be found in the published state on the fan_speed property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"fan_speed": NEW_VALUE}. The minimal value is 0 and the maximum value is 100. The unit of this value is %.
Power-on behavior (enum)
Controls the behavior when the device is powered on after power loss. Value can be found in the published state on the power_on_behavior property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"power_on_behavior": NEW_VALUE}. The possible values are: off, on, previous.
Light switch (binary)
Light switch. Value can be found in the published state on the light_switch property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"light_switch": NEW_VALUE}. If value equals ON light switch is ON, if OFF OFF.
Indicator (enum)
LED indicator mode. Value can be found in the published state on the indicator property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"indicator": NEW_VALUE}. The possible values are: off, off/on, on.
Child lock (binary)
Child Lock. Value can be found in the published state on the child_lock property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"child_lock": NEW_VALUE}. If value equals ON child lock is ON, if OFF OFF.
Minimum speed (numeric)
Vitesse minimale du ventilateur. Value can be found in the published state on the minimum_speed property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"minimum_speed": NEW_VALUE}. The minimal value is 0 and the maximum value is 100. The unit of this value is %.
