Tuya TS0601_fan_and_light_switch

ModelTS0601_fan_and_light_switch
VendorTuya
DescriptionFan & light switch
Exposesstatus_indication, switch (state), power_on_behavior, fan_speed

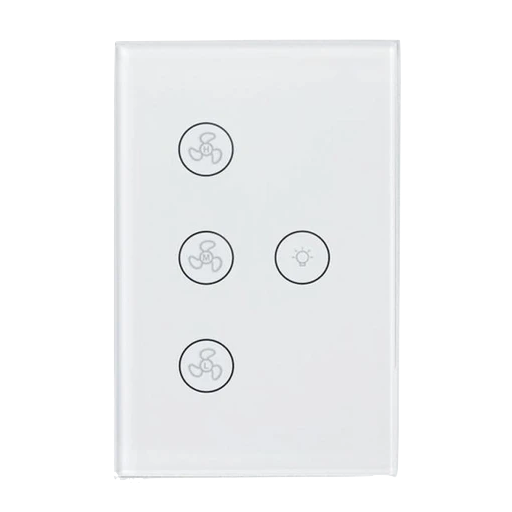

PictureTuya TS0601_fan_and_light_switch
White-labelLiwokit Fan+Light-01

Exposes

Status indication (binary)

Light switch. Value can be found in the published state on the status_indication property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"status_indication": NEW_VALUE}. If value equals ON status indication is ON, if OFF OFF.

Switch

The current state of this switch is in the published state under the state property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "ON"}, {"state": "OFF"} or {"state": "TOGGLE"}. It's not possible to read (/get) this value.

Power-on behavior (enum)

Controls the behavior when the device is powered on after power loss. Value can be found in the published state on the power_on_behavior property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"power_on_behavior": NEW_VALUE}. The possible values are: OFF, ON.

Fan speed (enum)

Speed of the fan. Value can be found in the published state on the fan_speed property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"fan_speed": NEW_VALUE}. The possible values are: minimum, medium, maximum.
