Zigbee2MQTT

Tuya TS0601_fan_5_levels_and_light_switch

ModelTS0601_fan_5_levels_and_light_switch
VendorTuya
DescriptionFan with 5 levels & light switch
Exposesstatus_indication, switch (state), power_on_behavior, fan_speed, linkquality

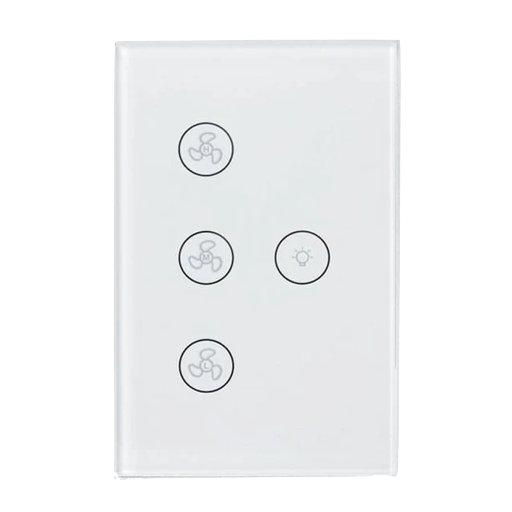

PictureTuya TS0601_fan_5_levels_and_light_switch
White-labelLiwokit Fan+Light-01

Exposes

Status indication (binary)

Light switch. Value can be found in the published state on the status_indication property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"status_indication": NEW_VALUE}. If value equals ON status indication is ON, if OFF OFF.

Switch

The current state of this switch is in the published state under the state property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "ON"}, {"state": "OFF"} or {"state": "TOGGLE"}. It's not possible to read (/get) this value.

Power-on behavior (enum)

Fan On Off. Value can be found in the published state on the power_on_behavior property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"power_on_behavior": NEW_VALUE}. The possible values are: OFF, ON.

Fan speed (numeric)

Speed off the fan. Value can be found in the published state on the fan_speed property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"fan_speed": NEW_VALUE}. The minimal value is 1 and the maximum value is 5.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
