TuYa TS0601_cover_4
Model | TS0601_cover_4 |
Vendor | TuYa |
Description | Cover |
Exposes | cover (state, position), motor_direction, motor_speed, opening_mode, set_upper_limit, set_bottom_limit, factory_reset, linkquality |

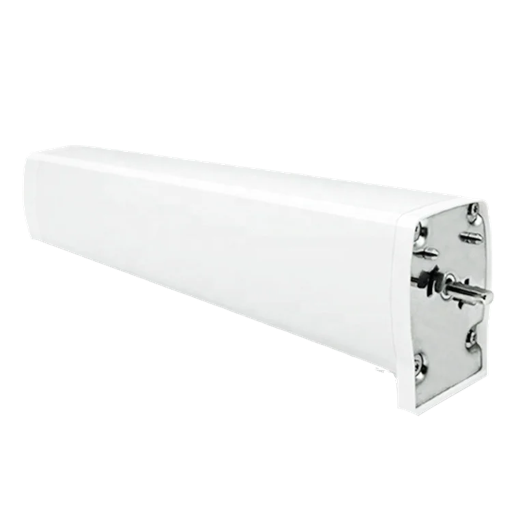

Picture | ![]() |
Exposes
Cover
The current state of this cover is in the published state under the state
property (value is OPEN
or CLOSE
). To control this cover publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"state": "OPEN"}
, {"state": "CLOSE"}
, {"state": "STOP"}
. It's not possible to read (/get
) this value. To change the position publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"position": VALUE}
where VALUE
is a number between 0
and 100
.
Motor_direction (enum)
Set the motor direction. Value can be found in the published state on the motor_direction
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"motor_direction": NEW_VALUE}
. The possible values are: normal
, reversed
.
Motor_speed (numeric)
Motor speed. Value can be found in the published state on the motor_speed
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"motor_speed": NEW_VALUE}
. The minimal value is 0
and the maximum value is 255
. The unit of this value is rpm
.
Opening_mode (enum)
Opening mode. Value can be found in the published state on the opening_mode
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"opening_mode": NEW_VALUE}
. The possible values are: tilt
, lift
.
Set_upper_limit (enum)
Set the upper limit, to reset limits use factory_reset. Value can be found in the published state on the set_upper_limit
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"set_upper_limit": NEW_VALUE}
. The possible values are: SET
.
Set_bottom_limit (enum)
Set the bottom limit, to reset limits use factory_reset. Value can be found in the published state on the set_bottom_limit
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"set_bottom_limit": NEW_VALUE}
. The possible values are: SET
.
Factory_reset (binary)
Factory reset the device. Value can be found in the published state on the factory_reset
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"factory_reset": NEW_VALUE}
. If value equals true
factory_reset is ON, if false
OFF.
Linkquality (numeric)
Link quality (signal strength). Value can be found in the published state on the linkquality
property. It's not possible to read (/get
) or write (/set
) this value. The minimal value is 0
and the maximum value is 255
. The unit of this value is lqi
.
