Tuya TS0601_alh14edn
| Model | TS0601_alh14edn |
| Vendor | Tuya |
| Description | Smart Blinds Controller |
| Exposes | cover (state, position), reverse_direction, motor_fault, upper_stroke_limit, middle_stroke_limit, lower_stroke_limit, motor_working_mode |

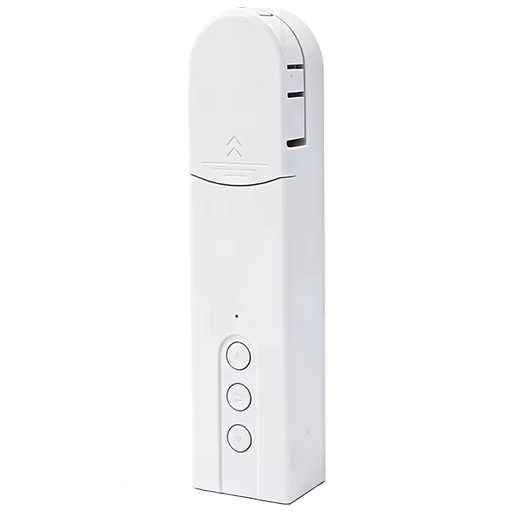

| Picture |  |
Options
How to use device type specific configuration
invert_cover: Inverts the cover position, false: open=100,close=0, true: open=0,close=100 (default false). The value must betrueorfalse
Exposes
Cover
The current state of this cover is in the published state under the state property (value is OPEN or CLOSE). To control this cover publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "OPEN"}, {"state": "CLOSE"}, {"state": "STOP"}. It's not possible to read (/get) this value. To change the position publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"position": VALUE} where VALUE is a number between 0 and 100.
Reverse direction (enum)
Reverse the motor direction. Value can be found in the published state on the reverse_direction property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"reverse_direction": NEW_VALUE}. The possible values are: forward, back.
