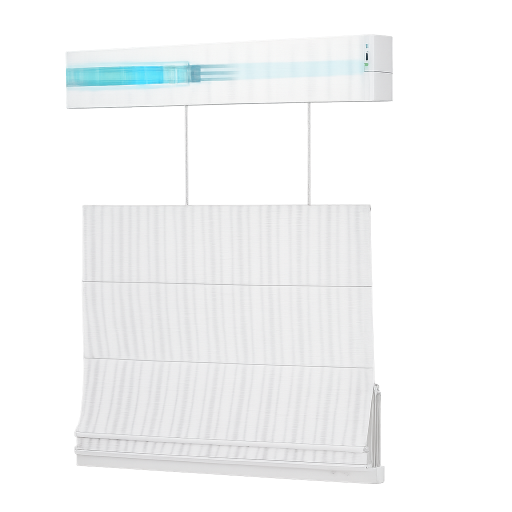

Tuya TS0301_dual_rail

Model	TS0301_dual_rail
Vendor	Tuya
Description	Top-down bottom-up dual motor shade
Exposes	cover (state, position), battery

Exposes

Cover (bottom endpoint)

The current state of this cover is in the published state under the state_bottom property (value is OPEN or CLOSE). To control this cover publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_bottom": "OPEN"}, {"state_bottom": "CLOSE"}, {"state_bottom": "STOP"}. It's not possible to read (/get) this value. To change the position publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"position_bottom": VALUE} where VALUE is a number between 0 and 100.

Cover (top endpoint)

The current state of this cover is in the published state under the state_top property (value is OPEN or CLOSE). To control this cover publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_top": "OPEN"}, {"state_top": "CLOSE"}, {"state_top": "STOP"}. It's not possible to read (/get) this value. To change the position publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"position_top": VALUE} where VALUE is a number between 0 and 100.

Battery (numeric)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.
