Tuya TS0049

ModelTS0049
VendorTuya
DescriptionWater valve
Exposeserror_status, switch (state), battery_state, countdown

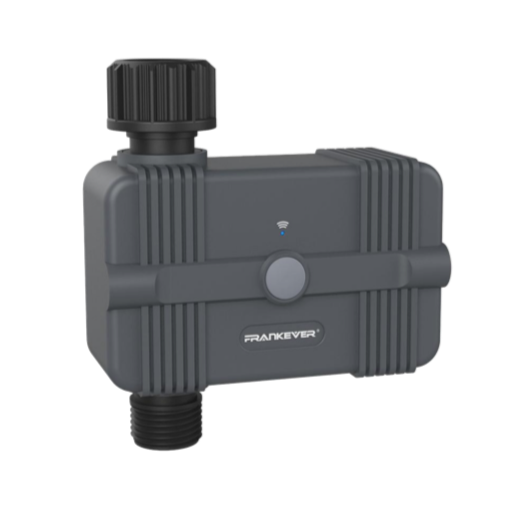

PictureTuya TS0049

Exposes

Error status (numeric)

Error status. Value can be found in the published state on the error_status property. It's not possible to read (/get) or write (/set) this value.

Switch

The current state of this switch is in the published state under the state property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "ON"}, {"state": "OFF"} or {"state": "TOGGLE"}. It's not possible to read (/get) this value.

Battery state (enum)

State of the battery. Value can be found in the published state on the battery_state property. It's not possible to read (/get) or write (/set) this value. The possible values are: low, medium, high.

Countdown (numeric)

Max on time in minutes. Value can be found in the published state on the countdown property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"countdown": NEW_VALUE}. The minimal value is 0 and the maximum value is 255. The unit of this value is minutes.

Help to make the docu better and edit this page on Github ✌
Last Updated:: 5/7/25, 7:30 PM
