TuYa TS0044 #

Model TS0044
Vendor TuYa
Description Wireless switch with 4 buttons
Supports action

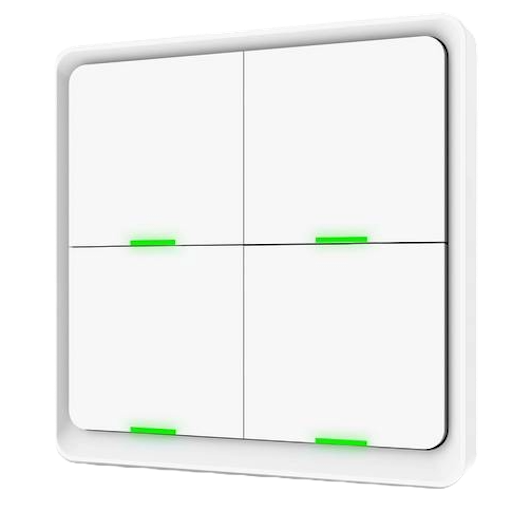

Picture TuYa TS0044
White-label Lonsonho TS0044

Notes #

Pairing #

To enter pairing mode hold bottom left button for 10 seconds until all 4 LEDs start flashing

Manual Home Assistant configuration #

Although Home Assistant integration through MQTT discovery is preferred, manual integration is possible with the following configuration:

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    icon: "mdi:gesture-double-tap"
    value_template: "{{ value_json.action }}"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    unit_of_measurement: "%"
    device_class: "battery"
    value_template: "{{ value_json.battery }}"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    icon: "mdi:signal"
    unit_of_measurement: "lqi"
    value_template: "{{ value_json.linkquality }}"
