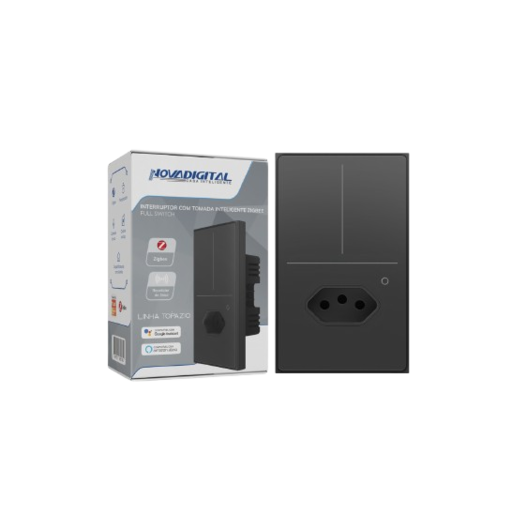

Nova Digital TO-WK-2W/B


Model	TO-WK-2W/B
Vendor	Nova Digital
Description	Topazio 2 gang switch with socket
Exposes	switch (state), countdown_l1, countdown_l2, countdown_l3, power_on_behavior, indicator_mode, backlight_switch, inching_l1, inching_l2, energy, current, power, voltage, induction, vibration

Options

How to use device type specific configuration

energy_calibration: Calibrates the energy value (percentual offset), takes into effect on next report of device. The value must be a number.
energy_precision: Number of digits after decimal point for energy, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a maximum value of 3
current_calibration: Calibrates the current value (percentual offset), takes into effect on next report of device. The value must be a number.
current_precision: Number of digits after decimal point for current, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a maximum value of 3
power_calibration: Calibrates the power value (percentual offset), takes into effect on next report of device. The value must be a number.
power_precision: Number of digits after decimal point for power, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a maximum value of 3
voltage_calibration: Calibrates the voltage value (percentual offset), takes into effect on next report of device. The value must be a number.
voltage_precision: Number of digits after decimal point for voltage, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a maximum value of 3

The current state of this switch is in the published state under the state_l1 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l1": "ON"}, {"state_l1": "OFF"} or {"state_l1": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state_l1": ""}.

Switch (l2 endpoint)

The current state of this switch is in the published state under the state_l2 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l2": "ON"}, {"state_l2": "OFF"} or {"state_l2": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state_l2": ""}.

Switch (l3 endpoint)

The current state of this switch is in the published state under the state_l3 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l3": "ON"}, {"state_l3": "OFF"} or {"state_l3": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state_l3": ""}.

Countdown l1 (numeric)

Countdown timer for channel 1. Value can be found in the published state on the countdown_l1 property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"countdown_l1": NEW_VALUE}. The minimal value is 0 and the maximum value is 43200. The unit of this value is s.

Countdown l2 (numeric)

Countdown timer for channel 2. Value can be found in the published state on the countdown_l2 property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"countdown_l2": NEW_VALUE}. The minimal value is 0 and the maximum value is 43200. The unit of this value is s.

Countdown l3 (numeric)

Countdown timer for channel 3. Value can be found in the published state on the countdown_l3 property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"countdown_l3": NEW_VALUE}. The minimal value is 0 and the maximum value is 43200. The unit of this value is s.

Power-on behavior (enum)

Controls the behavior when the device is powered on after power loss. Value can be found in the published state on the power_on_behavior property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"power_on_behavior": NEW_VALUE}. The possible values are: off, on, previous.

Indicator mode (enum)

Controls the indicator LED mode. Value can be found in the published state on the indicator_mode property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"indicator_mode": NEW_VALUE}. The possible values are: none, relay, pos.

Backlight switch (binary)

Turns the button backlight on or off. Value can be found in the published state on the backlight_switch property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"backlight_switch": NEW_VALUE}. If value equals ON backlight switch is ON, if OFF OFF.

Inching l1 (numeric)

Inching/pulse duration for channel 1. Value can be found in the published state on the inching_l1 property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"inching_l1": NEW_VALUE}. The minimal value is 0 and the maximum value is 3600. The unit of this value is s.

Inching l2 (numeric)

Inching/pulse duration for channel 2. Value can be found in the published state on the inching_l2 property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"inching_l2": NEW_VALUE}. The minimal value is 0 and the maximum value is 3600. The unit of this value is s.

Energy (numeric)

Accumulated energy. Value can be found in the published state on the energy property. It's not possible to read (/get) or write (/set) this value. The unit of this value is kWh.

Current (numeric)

Current. Value can be found in the published state on the current property. It's not possible to read (/get) or write (/set) this value. The unit of this value is A.

Power (numeric)

Power. Value can be found in the published state on the power property. It's not possible to read (/get) or write (/set) this value. The unit of this value is W.

Voltage (numeric)

Voltage. Value can be found in the published state on the voltage property. It's not possible to read (/get) or write (/set) this value. The unit of this value is V.

Induction (binary)

Enables/disables capacitive induction for the button. Value can be found in the published state on the induction property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"induction": NEW_VALUE}. If value equals ON induction is ON, if OFF OFF.

Vibration (enum)

Controls the vibration feedback intensity. Value can be found in the published state on the vibration property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"vibration": NEW_VALUE}. The possible values are: off, low, medium, high.
