YOKIS TLM2-UP

ModelTLM2-UP
VendorYOKIS
DescriptionWall-mounted 2-button transmitter
Exposesidentify, action

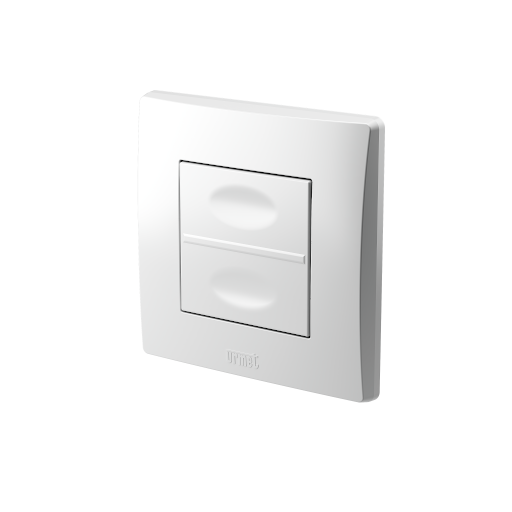

PictureYOKIS TLM2-UP

Notes

  • CSA product page: TLM2-UP
  • CSA product page: TLM2T503-UP

Options

How to use device type specific configuration

  • identify_timeout: Sets the duration of the identification procedure in seconds (i.e., how long the device would flash).The value ranges from 1 to 30 seconds (default: 3). The value must be a number with a minimum value of 1 and with a with a maximum value of 30

  • simulated_brightness: Simulate a brightness value. If this device provides a brightness_move_up or brightness_move_down action it is possible to specify the update interval and delta. The action_brightness_delta indicates the delta for each interval. Example:

simulated_brightness:
  delta: 20 # delta per interval, default = 20
  interval: 200 # interval in milliseconds, default = 200

Exposes

Identify (enum)

Initiate device identification. Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"identify": NEW_VALUE}. The possible values are: identify.

Action (enum)

Triggered action (e.g. a button click). Value can be found in the published state on the action property. It's not possible to read (/get) or write (/set) this value. The possible values are: on, off, toggle, brightness_move_to_level, brightness_move_up, brightness_move_down, brightness_step_up, brightness_step_down, brightness_stop, open, close, stop.

Help to make the docu better and edit this page on Github ✌
