Tuya TGM50-ZB

ModelTGM50-ZB
VendorTuya
DescriptionBeok wall thermostat
Exposeschild_lock, sensor, climate (system_mode, preset, current_heating_setpoint, running_state, local_temperature, local_temperature_calibration), backlight_mode, frost_protection, max_temperature_limit, temperature_delta, factory_reset

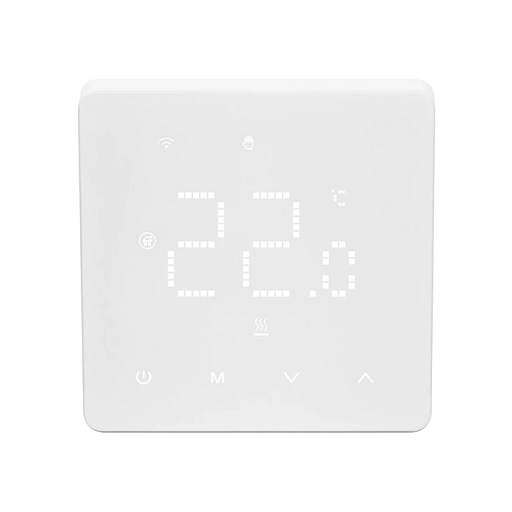

PictureTuya TGM50-ZB

Pairing

In power on state, press and hold the '^' key (bottom right key) for 5-8 seconds, the Wi-Fi icon flashes on the thermostat display, and the thermostat enters pairing state.

Exposes

Child lock (binary)

Enables/disables physical input on the device. Value can be found in the published state on the child_lock property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"child_lock": NEW_VALUE}. If value equals LOCK child lock is ON, if UNLOCK OFF.

Sensor (enum)

Select temperature sensor to use. Value can be found in the published state on the sensor property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"sensor": NEW_VALUE}. The possible values are: internal, external, both.

Climate

This climate device supports the following features: system_mode, preset, current_heating_setpoint, running_state, local_temperature, local_temperature_calibration.

  • current_heating_setpoint: Temperature setpoint. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"current_heating_setpoint": VALUE} where VALUE is the °C between 5 and 35. Reading (/get) this attribute is not possible.
  • local_temperature: Current temperature measured on the device (in °C). Reading (/get) this attribute is not possible.
  • system_mode: Mode of this device. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"system_mode": VALUE} where VALUE is one of: off, heat. Reading (/get) this attribute is not possible.
  • preset: Mode of this device (similar to system_mode). To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"preset": VALUE} where VALUE is one of: manual, auto. Reading (/get) this attribute is not possible.
  • running_state: The current running state. Possible values are: idle, heat. Reading (/get) this attribute is not possible.
  • local_temperature_calibration: Offset to add/subtract to the local temperature. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"local_temperature_calibration": VALUE}.The minimal value is -9.9 and the maximum value is 9.9 with a step size of 0.1.

Backlight mode (enum)

Intensity of the backlight. Value can be found in the published state on the backlight_mode property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"backlight_mode": NEW_VALUE}. The possible values are: off, always_low, always_mid, always_high.

Frost protection (binary)

Antifreeze function. Value can be found in the published state on the frost_protection property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"frost_protection": NEW_VALUE}. If value equals ON frost protection is ON, if OFF OFF.

Max temperature limit (numeric)

Maximum upper temperature. Value can be found in the published state on the max_temperature_limit property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"max_temperature_limit": NEW_VALUE}. The minimal value is 15 and the maximum value is 90. The unit of this value is °C. Besides the numeric values the following values are accepted: default.

Temperature delta (numeric)

The delta between local_temperature and current_heating_setpoint to trigger Heat. Value can be found in the published state on the temperature_delta property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"temperature_delta": NEW_VALUE}. The minimal value is 0.5 and the maximum value is 10. The unit of this value is °C. Besides the numeric values the following values are accepted: default.

Factory reset (binary)

Full factory reset, use with caution!. Value can be found in the published state on the factory_reset property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"factory_reset": NEW_VALUE}. If value equals ON factory reset is ON, if OFF OFF.
