IKEA T1828 #

Model T1828
Vendor IKEA
Description GUNNARP panel round
Supports on/off, brightness, color temperature

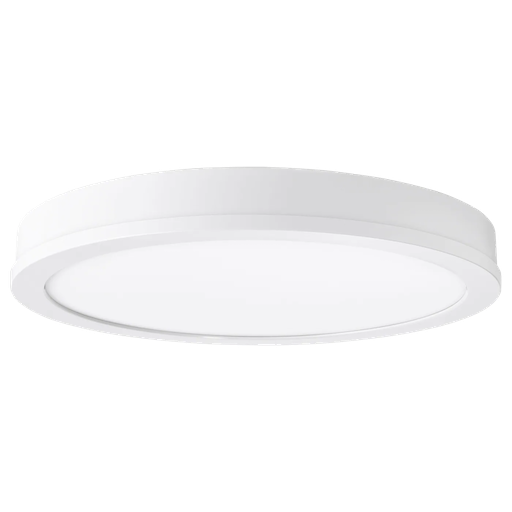

Picture IKEA T1828

Notes #

Pairing #

Factory reset the light bulb (video). After resetting the bulb will automatically connect.

While pairing, keep the bulb close the the CC2531 USB sniffer.

What works is to use (very) short “on’s” and a little bit longer “off’s”. Start with bulb on, then off, and then 6 “on’s”, where you kill the light as soon as the bulb shows signs of turning on.

Device type specific configuration #

How to use device type specific configuration

OTA updates #

This device supports OTA updates, for more information see OTA updates.

Manual Home Assistant configuration #

Although Home Assistant integration through MQTT discovery is preferred, manual integration is possible with the following configuration:

light:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    brightness: true
    color_temp: true
    schema: "json"
    command_topic: "zigbee2mqtt/<FRIENDLY_NAME>/set"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    icon: "mdi:signal"
    unit_of_measurement: "lqi"
    value_template: "{{ value_json.linkquality }}"
