Lincukoo SZLR08

ModelSZLR08
VendorLincukoo
Description24GHz millimeter wave radar
Exposespresence, illuminance, installation_height, radar_sensitivity, fading_time, relay_switch, radar_switch, indicator, relay_mode, radar_mode

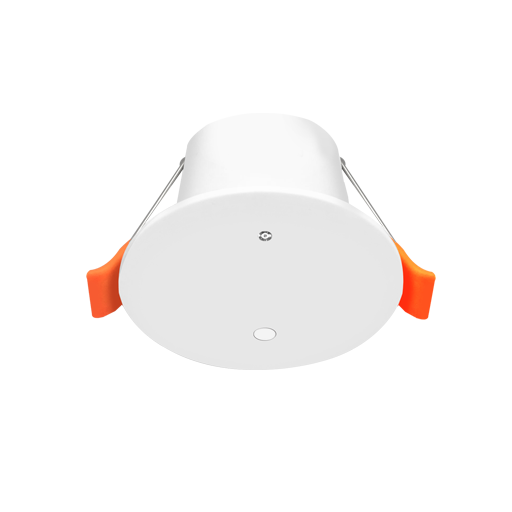

PictureLincukoo SZLR08

Options

How to use device type specific configuration

  • illuminance_calibration: Calibrates the illuminance value (percentual offset), takes into effect on next report of device. The value must be a number.

Exposes

Presence (binary)

Indicates whether the device detected presence. Value can be found in the published state on the presence property. It's not possible to read (/get) or write (/set) this value. If value equals true presence is ON, if false OFF.

Illuminance (numeric)

Measured illuminance. Value can be found in the published state on the illuminance property. It's not possible to read (/get) or write (/set) this value. The unit of this value is lx.

Installation height (numeric)

Maximum range. Value can be found in the published state on the installation_height property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"installation_height": NEW_VALUE}. The minimal value is 1.5 and the maximum value is 6. The unit of this value is m.

Radar sensitivity (numeric)

Sensitivity of the radar. Value can be found in the published state on the radar_sensitivity property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"radar_sensitivity": NEW_VALUE}. The minimal value is 68 and the maximum value is 90.

Fading time (numeric)

Fading time. Value can be found in the published state on the fading_time property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"fading_time": NEW_VALUE}. The minimal value is 3 and the maximum value is 1799. The unit of this value is s.

Relay switch (binary)

Relay switch. Value can be found in the published state on the relay_switch property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"relay_switch": NEW_VALUE}. If value equals ON relay switch is ON, if OFF OFF.

Radar switch (binary)

Radar switch. Value can be found in the published state on the radar_switch property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"radar_switch": NEW_VALUE}. If value equals ON radar switch is ON, if OFF OFF.

Indicator (binary)

LED indicator. Value can be found in the published state on the indicator property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"indicator": NEW_VALUE}. If value equals ON indicator is ON, if OFF OFF.

Relay mode (enum)

control mode of the relay. Value can be found in the published state on the relay_mode property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"relay_mode": NEW_VALUE}. The possible values are: auto, manual.

Radar mode (enum)

radar mode for the relay controlling. Value can be found in the published state on the radar_mode property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"radar_mode": NEW_VALUE}. The possible values are: people_on, people_off.
