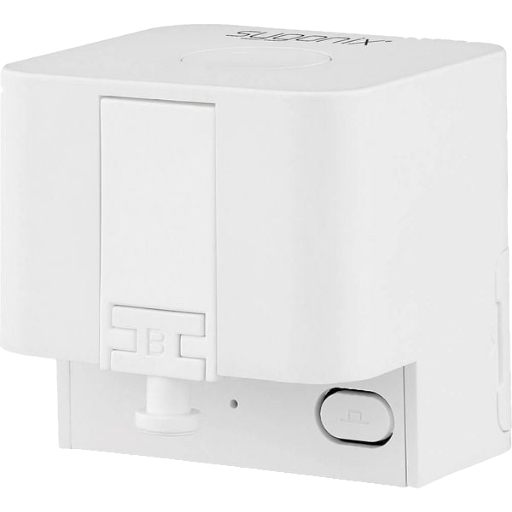

Sygonix SY-6811314


Model	SY-6811314
Vendor	Sygonix
Description	Zigbee Smart button/switch Pusher
Exposes	switch (state), switch_states, mode, button_hold_duration, auto_adjustment, arm_start_position, arm_end_position, battery

The current state of this switch is in the published state under the state property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "ON"}, {"state": "OFF"} or {"state": "TOGGLE"}. It's not possible to read (/get) this value.

Switch states (enum)

Changes the displayed state to the opposite state. Value can be found in the published state on the switch_states property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch_states": NEW_VALUE}. The possible values are: SWITCH.

Mode (enum)

Work mode of the finger robot. Button: press and release, Switch: press. Value can be found in the published state on the mode property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"mode": NEW_VALUE}. The possible values are: button, switch.

Button hold duration (numeric)

Sets the press duration for button mode. Value can be found in the published state on the button_hold_duration property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"button_hold_duration": NEW_VALUE}. The minimal value is 0.3 and the maximum value is 10. The unit of this value is s.

Auto adjustment (enum)

Auto select the end position. Slowly lower the arm until it fully presses the button, and save the result. Value can be found in the published state on the auto_adjustment property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"auto_adjustment": NEW_VALUE}. The possible values are: START.

Arm start position (numeric)

Sets arm position when idle. Value can be found in the published state on the arm_start_position property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"arm_start_position": NEW_VALUE}. The minimal value is 0 and the maximum value is 30.

Arm end position (numeric)

Sets arm position when fully pressed. Value can be found in the published state on the arm_end_position property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"arm_end_position": NEW_VALUE}. The minimal value is 0 and the maximum value is 30.

Battery (numeric)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.
