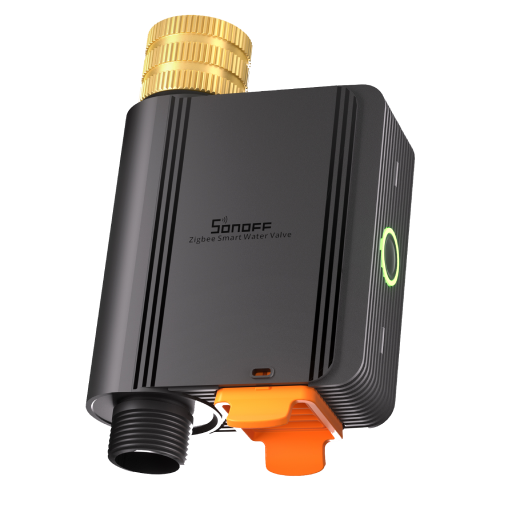

SONOFF SWV-ZNE


Model	SWV-ZNE
Vendor	SONOFF
Description	Zigbee smart water valve
Exposes	battery, switch (state), child_lock, manual_irrigation_duration, irrigation_plan_index, irrigation_plan_enabled, irrigation_plan_loop_type, irrigation_plan_interval_days, irrigation_plan_sunday, irrigation_plan_monday, irrigation_plan_tuesday, irrigation_plan_wednesday, irrigation_plan_thursday, irrigation_plan_friday, irrigation_plan_saturday, irrigation_plan_enable_date, irrigation_plan_start_time, irrigation_plan_mode, irrigation_plan_total_duration, irrigation_plan_duration, irrigation_plan_interval_duration, irrigation_plan_create_datetime, irrigation_plan_remove_plan_index, irrigation_schedule_status, rain_delay, rain_delay_end_datetime, seasonal_watering_adjustment_january, seasonal_watering_adjustment_february, seasonal_watering_adjustment_march, seasonal_watering_adjustment_april, seasonal_watering_adjustment_may, seasonal_watering_adjustment_june, seasonal_watering_adjustment_july, seasonal_watering_adjustment_august, seasonal_watering_adjustment_september, seasonal_watering_adjustment_october, seasonal_watering_adjustment_november, seasonal_watering_adjustment_december, real_time_irrigation_duration, hour_irrigation_duration, 24_hours_records, 30_days_records, 180_days_records, read_swvzf_records

OTA updates

This device supports OTA updates, for more information see OTA updates.

Options

How to use device type specific configuration

state_action: State actions will also be published as 'action' when true (default false). The value must be true or false

Remaining battery in %. Value can be found in the published state on the battery property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"battery": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Switch

The current state of this switch is in the published state under the state property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "ON"}, {"state": "OFF"} or {"state": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state": ""}.

On with timed off

When setting the state to ON, it might be possible to specify an automatic shutoff after a certain amount of time. To do this add an additional property on_time to the payload which is the time in seconds the state should remain on. Additionally an off_wait_time property can be added to the payload to specify the cooldown time in seconds when the switch will not answer to other on with timed off commands. Support depends on the switch firmware. Some devices might require both on_time and off_wait_time to work Examples : {"state" : "ON", "on_time": 300}, {"state" : "ON", "on_time": 300, "off_wait_time": 120}.

Child lock (binary)

Enables/disables physical input on the device. Value can be found in the published state on the child_lock property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"child_lock": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"child_lock": NEW_VALUE}. If value equals LOCK child lock is ON, if UNLOCK OFF.

Manual irrigation duration (numeric)

Default duration for manual irrigation. Value can be found in the published state on the manual_irrigation_duration property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"manual_irrigation_duration": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"manual_irrigation_duration": NEW_VALUE}. The minimal value is 1 and the maximum value is 719. The unit of this value is min.

Irrigation plan index (numeric)

Irrigation plan index. Value can be found in the published state on the irrigation_plan_index property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"irrigation_plan_index": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"irrigation_plan_index": NEW_VALUE}. The minimal value is 0 and the maximum value is 5.

Irrigation plan enabled (binary)

Enable the selected irrigation plan. Value can be found in the published state on the irrigation_plan_enabled property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"irrigation_plan_enabled": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"irrigation_plan_enabled": NEW_VALUE}. If value equals true irrigation plan enabled is ON, if false OFF.

Irrigation plan loop type (enum)

Repeat mode for the selected irrigation plan. Value can be found in the published state on the irrigation_plan_loop_type property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"irrigation_plan_loop_type": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"irrigation_plan_loop_type": NEW_VALUE}. The possible values are: odd_days, even_days, day_interval, weekdays.

Irrigation plan interval days (numeric)

Repeat interval in days when loop type is day_interval. Value can be found in the published state on the irrigation_plan_interval_days property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"irrigation_plan_interval_days": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"irrigation_plan_interval_days": NEW_VALUE}. The minimal value is 0 and the maximum value is 30.

Irrigation plan sunday (binary)

Run the selected irrigation plan on sunday. Value can be found in the published state on the irrigation_plan_sunday property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"irrigation_plan_sunday": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"irrigation_plan_sunday": NEW_VALUE}. If value equals true irrigation plan sunday is ON, if false OFF.

Irrigation plan monday (binary)

Run the selected irrigation plan on monday. Value can be found in the published state on the irrigation_plan_monday property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"irrigation_plan_monday": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"irrigation_plan_monday": NEW_VALUE}. If value equals true irrigation plan monday is ON, if false OFF.

Irrigation plan tuesday (binary)

Run the selected irrigation plan on tuesday. Value can be found in the published state on the irrigation_plan_tuesday property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"irrigation_plan_tuesday": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"irrigation_plan_tuesday": NEW_VALUE}. If value equals true irrigation plan tuesday is ON, if false OFF.

Irrigation plan wednesday (binary)

Run the selected irrigation plan on wednesday. Value can be found in the published state on the irrigation_plan_wednesday property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"irrigation_plan_wednesday": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"irrigation_plan_wednesday": NEW_VALUE}. If value equals true irrigation plan wednesday is ON, if false OFF.

Irrigation plan thursday (binary)

Run the selected irrigation plan on thursday. Value can be found in the published state on the irrigation_plan_thursday property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"irrigation_plan_thursday": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"irrigation_plan_thursday": NEW_VALUE}. If value equals true irrigation plan thursday is ON, if false OFF.

Irrigation plan friday (binary)

Run the selected irrigation plan on friday. Value can be found in the published state on the irrigation_plan_friday property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"irrigation_plan_friday": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"irrigation_plan_friday": NEW_VALUE}. If value equals true irrigation plan friday is ON, if false OFF.

Irrigation plan saturday (binary)

Run the selected irrigation plan on saturday. Value can be found in the published state on the irrigation_plan_saturday property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"irrigation_plan_saturday": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"irrigation_plan_saturday": NEW_VALUE}. If value equals true irrigation plan saturday is ON, if false OFF.

Irrigation plan enable date (text)

Enable date in local YYYY-MM-DD format. Value can be found in the published state on the irrigation_plan_enable_date property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"irrigation_plan_enable_date": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"irrigation_plan_enable_date": NEW_VALUE}.

Irrigation plan start time (text)

Start time in local HH:mm format. Value can be found in the published state on the irrigation_plan_start_time property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"irrigation_plan_start_time": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"irrigation_plan_start_time": NEW_VALUE}.

Irrigation plan mode (enum)

Irrigation mode for the selected plan. Value can be found in the published state on the irrigation_plan_mode property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"irrigation_plan_mode": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"irrigation_plan_mode": NEW_VALUE}. The possible values are: duration, duration_with_interval.

Irrigation plan total duration (numeric)

Total duration for the selected irrigation plan. Value can be found in the published state on the irrigation_plan_total_duration property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"irrigation_plan_total_duration": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"irrigation_plan_total_duration": NEW_VALUE}. The minimal value is 0 and the maximum value is 719. The unit of this value is min.

Irrigation plan duration (numeric)

Irrigation duration for the selected plan. Value can be found in the published state on the irrigation_plan_duration property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"irrigation_plan_duration": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"irrigation_plan_duration": NEW_VALUE}. The minimal value is 1 and the maximum value is 60. The unit of this value is min.

Irrigation plan interval duration (numeric)

Pause duration between irrigation cycles. Value can be found in the published state on the irrigation_plan_interval_duration property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"irrigation_plan_interval_duration": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"irrigation_plan_interval_duration": NEW_VALUE}. The minimal value is 1 and the maximum value is 60. The unit of this value is min.

Irrigation plan create datetime (text)

Create datetime in ISO format with timezone (e.g. YYYY-MM-DDTHH:mm:ss+08:00). Value can be found in the published state on the irrigation_plan_create_datetime property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"irrigation_plan_create_datetime": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"irrigation_plan_create_datetime": NEW_VALUE}.

Irrigation plan remove plan index (numeric)

Index of the irrigation plan to remove. Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"irrigation_plan_remove_plan_index": NEW_VALUE}. The minimal value is 0 and the maximum value is 5.

Irrigation schedule status (composite)

Irrigation schedule execution status. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"irrigation_schedule_status": ""}.

schedule_status (enum): Schedule status allowed values: start, end, running, standby
schedule_index (numeric): Schedule index
schedule_type (enum): Schedule type allowed values: automatic, manual
irrigation_mode (enum): Irrigation mode allowed values: duration, duration_with_interval
start_time (text): Schedule start time
expected_end_time (text): Expected end time
actual_end_time (text): Actual end time

Rain delay (text)

Schedule delay end time in ISO format with timezone (e.g. YYYY-MM-DDTHH:mm:ss+08:00), or "0" to disable. Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"rain_delay": NEW_VALUE}.

Rain delay end datetime (text)

User triggered delay end time.. Value can be found in the published state on the rain_delay_end_datetime property. It's not possible to read (/get) or write (/set) this value.

Seasonal watering adjustment january (numeric)

Watering adjustment multiplier for january (1.0 = 100%, 2.0 = 200%). Value can be found in the published state on the seasonal_watering_adjustment_january property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"seasonal_watering_adjustment_january": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"seasonal_watering_adjustment_january": NEW_VALUE}. The minimal value is 0.1 and the maximum value is 2.

Seasonal watering adjustment february (numeric)

Watering adjustment multiplier for february (1.0 = 100%, 2.0 = 200%). Value can be found in the published state on the seasonal_watering_adjustment_february property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"seasonal_watering_adjustment_february": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"seasonal_watering_adjustment_february": NEW_VALUE}. The minimal value is 0.1 and the maximum value is 2.

Seasonal watering adjustment march (numeric)

Watering adjustment multiplier for march (1.0 = 100%, 2.0 = 200%). Value can be found in the published state on the seasonal_watering_adjustment_march property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"seasonal_watering_adjustment_march": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"seasonal_watering_adjustment_march": NEW_VALUE}. The minimal value is 0.1 and the maximum value is 2.

Seasonal watering adjustment april (numeric)

Watering adjustment multiplier for april (1.0 = 100%, 2.0 = 200%). Value can be found in the published state on the seasonal_watering_adjustment_april property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"seasonal_watering_adjustment_april": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"seasonal_watering_adjustment_april": NEW_VALUE}. The minimal value is 0.1 and the maximum value is 2.

Seasonal watering adjustment may (numeric)

Watering adjustment multiplier for may (1.0 = 100%, 2.0 = 200%). Value can be found in the published state on the seasonal_watering_adjustment_may property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"seasonal_watering_adjustment_may": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"seasonal_watering_adjustment_may": NEW_VALUE}. The minimal value is 0.1 and the maximum value is 2.

Seasonal watering adjustment june (numeric)

Watering adjustment multiplier for june (1.0 = 100%, 2.0 = 200%). Value can be found in the published state on the seasonal_watering_adjustment_june property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"seasonal_watering_adjustment_june": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"seasonal_watering_adjustment_june": NEW_VALUE}. The minimal value is 0.1 and the maximum value is 2.

Seasonal watering adjustment july (numeric)

Watering adjustment multiplier for july (1.0 = 100%, 2.0 = 200%). Value can be found in the published state on the seasonal_watering_adjustment_july property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"seasonal_watering_adjustment_july": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"seasonal_watering_adjustment_july": NEW_VALUE}. The minimal value is 0.1 and the maximum value is 2.

Seasonal watering adjustment august (numeric)

Watering adjustment multiplier for august (1.0 = 100%, 2.0 = 200%). Value can be found in the published state on the seasonal_watering_adjustment_august property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"seasonal_watering_adjustment_august": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"seasonal_watering_adjustment_august": NEW_VALUE}. The minimal value is 0.1 and the maximum value is 2.

Seasonal watering adjustment september (numeric)

Watering adjustment multiplier for september (1.0 = 100%, 2.0 = 200%). Value can be found in the published state on the seasonal_watering_adjustment_september property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"seasonal_watering_adjustment_september": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"seasonal_watering_adjustment_september": NEW_VALUE}. The minimal value is 0.1 and the maximum value is 2.

Seasonal watering adjustment october (numeric)

Watering adjustment multiplier for october (1.0 = 100%, 2.0 = 200%). Value can be found in the published state on the seasonal_watering_adjustment_october property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"seasonal_watering_adjustment_october": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"seasonal_watering_adjustment_october": NEW_VALUE}. The minimal value is 0.1 and the maximum value is 2.

Seasonal watering adjustment november (numeric)

Watering adjustment multiplier for november (1.0 = 100%, 2.0 = 200%). Value can be found in the published state on the seasonal_watering_adjustment_november property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"seasonal_watering_adjustment_november": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"seasonal_watering_adjustment_november": NEW_VALUE}. The minimal value is 0.1 and the maximum value is 2.

Seasonal watering adjustment december (numeric)

Watering adjustment multiplier for december (1.0 = 100%, 2.0 = 200%). Value can be found in the published state on the seasonal_watering_adjustment_december property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"seasonal_watering_adjustment_december": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"seasonal_watering_adjustment_december": NEW_VALUE}. The minimal value is 0.1 and the maximum value is 2.

Real time irrigation duration (numeric)

Real-time irrigation duration. Value can be found in the published state on the real_time_irrigation_duration property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"real_time_irrigation_duration": ""}. It's not possible to write (/set) this value. The unit of this value is min.

Hour irrigation duration (numeric)

Hourly irrigation duration. Value can be found in the published state on the hour_irrigation_duration property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"hour_irrigation_duration": ""}. It's not possible to write (/set) this value. The unit of this value is min.

type (enum): Reading type allowed values: 24_hours, 30_days, 6_months
time_start (text): Start time in ISO format with timezone (e.g. YYYY-MM-DDTHH:mm:ss+08:00)
time_end (text): End time in ISO format with timezone (e.g. YYYY-MM-DDTHH:mm:ss+08:00)
