SONOFF SNZB-01P

ModelSNZB-01P
VendorSONOFF
DescriptionWireless button
Exposesbattery, voltage, action

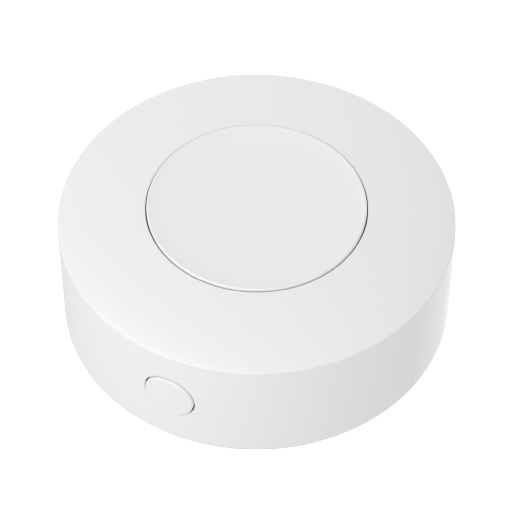

PictureSONOFF SNZB-01P

Notes

Pairing

If brand new, when powered on it will attempt to pair to Zigbee2MQTT automatically. If not (or if has been paired before and needs to be re-paired) - press and hold the button at the top for about 5 seconds. The device will then go into pairing mode. It should then be connected to Zigbee2MQTT

OTA updates

This device supports OTA updates, for more information see OTA updates.

Exposes

Battery (numeric)

Remaining battery in %. Value can be found in the published state on the battery property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"battery": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Voltage (numeric)

Reported battery voltage in millivolts. Value can be found in the published state on the voltage property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"voltage": ""}. It's not possible to write (/set) this value. The unit of this value is mV.

Action (enum)

Triggered action (e.g. a button click). Value can be found in the published state on the action property. It's not possible to read (/get) or write (/set) this value. The possible values are: single, double, long.

Help to make the docu better and edit this page on Github ✌
