NodOn SIN-4-FP-21

ModelSIN-4-FP-21
VendorNodOn
DescriptionPilot wire heating module
Exposespower, energy, pilot_wire_mode, linkquality

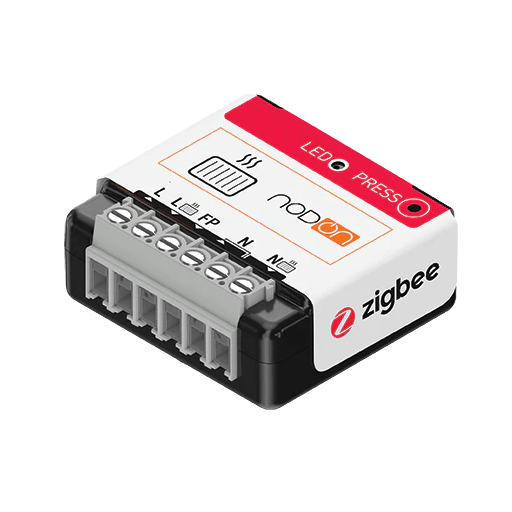

PictureNodOn SIN-4-FP-21

OTA updates

This device supports OTA updates, for more information see OTA updates.

Options

How to use device type specific configuration

  • power_calibration: Calibrates the power value (percentual offset), takes into effect on next report of device. The value must be a number.

  • power_precision: Number of digits after decimal point for power, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3

  • energy_calibration: Calibrates the energy value (percentual offset), takes into effect on next report of device. The value must be a number.

  • energy_precision: Number of digits after decimal point for energy, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3

  • state_action: State actions will also be published as 'action' when true (default false). The value must be true or false

Exposes

Power (numeric)

Instantaneous measured power. Value can be found in the published state on the power property. It's not possible to read (/get) or write (/set) this value. The unit of this value is W.

Energy (numeric)

Sum of consumed energy. Value can be found in the published state on the energy property. It's not possible to read (/get) or write (/set) this value. The unit of this value is kWh.

Pilot wire mode (enum)

Controls the target temperature of the heater, with respect to the temperature set on that heater. Possible values: comfort (target temperature = heater set temperature) eco (target temperature = heater set temperature - 3.5°C), frost_protection (target temperature = 7 to 8°C), off (heater stops heating), and the less commonly used comfort_-1 (target temperature = heater set temperature - 1°C), comfort_-2 (target temperature = heater set temperature - 2°C),.. Value can be found in the published state on the pilot_wire_mode property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"pilot_wire_mode": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"pilot_wire_mode": NEW_VALUE}. The possible values are: comfort, eco, frost_protection, off, comfort_-1, comfort_-2.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
