Moes SFL02-Z
Model | SFL02-Z |
Vendor | Moes |
Description | Star feather smart switch 2 gangs |
Exposes | backlight_mode, switch (state), countdown, power_on_behavior, mode, action |

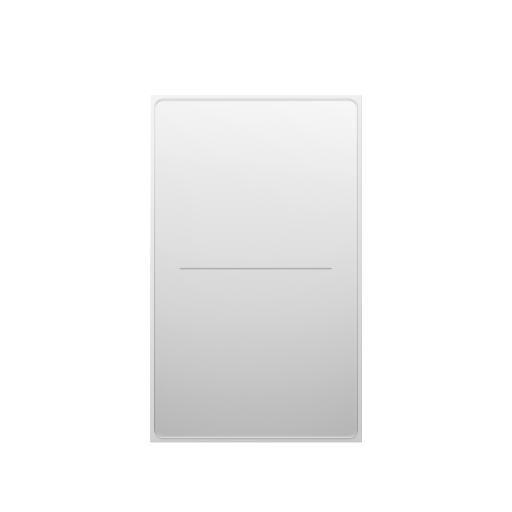

Picture | ![]() |
Exposes
Backlight mode (binary)
Mode of the backlight. Value can be found in the published state on the backlight_mode
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"backlight_mode": NEW_VALUE}
. If value equals ON
backlight mode is ON, if OFF
OFF.
Switch (l1 endpoint)
The current state of this switch is in the published state under the state_l1
property (value is ON
or OFF
). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"state_l1": "ON"}
, {"state_l1": "OFF"}
or {"state_l1": "TOGGLE"}
. It's not possible to read (/get
) this value.
Switch (l2 endpoint)
The current state of this switch is in the published state under the state_l2
property (value is ON
or OFF
). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"state_l2": "ON"}
, {"state_l2": "OFF"}
or {"state_l2": "TOGGLE"}
. It's not possible to read (/get
) this value.
Countdown (numeric, l1 endpoint)
Countdown to turn device off after a certain time. Value can be found in the published state on the countdown_l1
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"countdown_l1": NEW_VALUE}
. The minimal value is 0
and the maximum value is 43200
. The unit of this value is s
.
Countdown (numeric, l2 endpoint)
Countdown to turn device off after a certain time. Value can be found in the published state on the countdown_l2
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"countdown_l2": NEW_VALUE}
. The minimal value is 0
and the maximum value is 43200
. The unit of this value is s
.
Power-on behavior (enum)
Controls the behavior when the device is powered on after power loss. Value can be found in the published state on the power_on_behavior
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"power_on_behavior": NEW_VALUE}
. The possible values are: off
, previous
, on
.
Mode (enum, l1 endpoint)
Switch1 mode. Value can be found in the published state on the mode_l1
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"mode_l1": NEW_VALUE}
. The possible values are: switch_1
, scene_1
.
Mode (enum, l2 endpoint)
Switch2 mode. Value can be found in the published state on the mode_l2
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"mode_l2": NEW_VALUE}
. The possible values are: switch_2
, scene_2
.
Action (enum)
Triggered action (e.g. a button click). Value can be found in the published state on the action
property. It's not possible to read (/get
) or write (/set
) this value. The possible values are: scene_1
, scene_2
.
