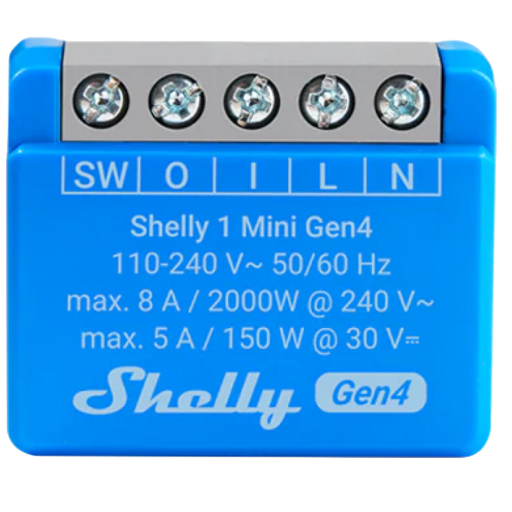

Shelly S4SW-001X8EU


Model	S4SW-001X8EU
Vendor	Shelly
Description	1 Mini Gen 4
Exposes	switch (state), wifi_status, ip_address, dhcp_enabled, wifi_config

Options

How to use device type specific configuration

state_action: State actions will also be published as 'action' when true (default false). The value must be true or false

The current state of this switch is in the published state under the state property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "ON"}, {"state": "OFF"} or {"state": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state": ""}.

On with timed off

When setting the state to ON, it might be possible to specify an automatic shutoff after a certain amount of time. To do this add an additional property on_time to the payload which is the time in seconds the state should remain on. Additionally an off_wait_time property can be added to the payload to specify the cooldown time in seconds when the switch will not answer to other on with timed off commands. Support depends on the switch firmware. Some devices might require both on_time and off_wait_time to work Examples : {"state" : "ON", "on_time": 300}, {"state" : "ON", "on_time": 300, "off_wait_time": 120}.

Wi-Fi status (text)

Current connection status. Value can be found in the published state on the wifi_status property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"wifi_status": ""}. It's not possible to write (/set) this value.

IP address (text)

IP address currently assigned to the device. Value can be found in the published state on the ip_address property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"ip_address": ""}. It's not possible to write (/set) this value.

DHCP enabled (binary)

Indicates whether DHCP is used to automatically assign network settings. Value can be found in the published state on the dhcp_enabled property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"dhcp_enabled": ""}. It's not possible to write (/set) this value. If value equals true dHCP enabled is ON, if false OFF.

Wi-Fi Configuration (composite)

Can be set by publishing to zigbee2mqtt/FRIENDLY_NAME/set with payload {"wifi_config": {"enabled": VALUE, "ssid": VALUE, "password": VALUE, "static_ip": VALUE, "net_mask": VALUE, "gateway": VALUE, "name_server": VALUE}} To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"wifi_config": ""}.

enabled (binary): Enable/disable Wi-Fi connectivity allowed values: true or false
ssid (text): Name (SSID) of the Wi-Fi network to connect to
password (text): Password for the selected Wi-Fi network
static_ip (text): Manually assigned IP address (used when DHCP is disabled)
net_mask (text): Subnet mask for the static IP configuration
gateway (text): Default gateway address for static IP configuration
name_server (text): Name server address for static IP configuration
