Woox R7067
Model | R7067 |
Vendor | Woox |
Description | Thermostatic radiator valve |
Exposes | climate (local_temperature, current_heating_setpoint, system_mode, preset), switch (state), comfort_temperature, eco_temperature, local_temperature_calibration, child_lock, window_detection, window_detection_temperature, window_detection_time, boost_heating, boost_time, error_status, programming_mode1, programming_mode2 |

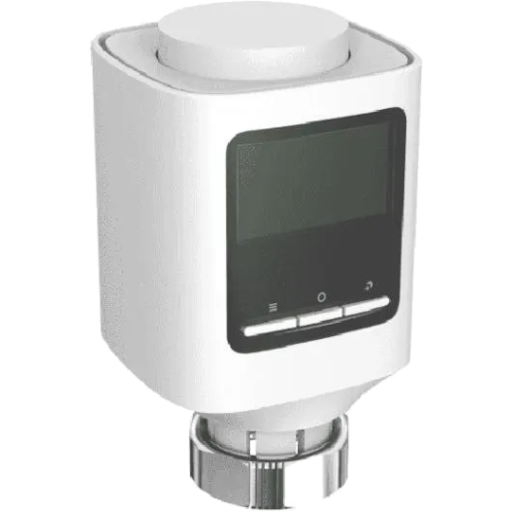

Picture | ![]() |
Exposes
Climate
This climate device supports the following features: local_temperature
, current_heating_setpoint
, system_mode
, preset
.
current_heating_setpoint
: Temperature setpoint. To control publish a message to topiczigbee2mqtt/FRIENDLY_NAME/set
with payload{"current_heating_setpoint": VALUE}
whereVALUE
is the °C between0
and30
. Reading (/get
) this attribute is not possible.local_temperature
: Current temperature measured on the device (in °C). Reading (/get
) this attribute is not possible.system_mode
: auto - Automatic mode. heat - Manual mode.. To control publish a message to topiczigbee2mqtt/FRIENDLY_NAME/set
with payload{"system_mode": VALUE}
whereVALUE
is one of:auto
,heat
. Reading (/get
) this attribute is not possible.preset
: Mode of this device (similar to system_mode). To control publish a message to topiczigbee2mqtt/FRIENDLY_NAME/set
with payload{"preset": VALUE}
whereVALUE
is one of:Comfort
,Eco
. Reading (/get
) this attribute is not possible.
Away mode (switch)
The current state of this switch is in the published state under the away_mode
property (value is ON
or OFF
). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"away_mode": "ON"}
, {"away_mode": "OFF"}
or {"away_mode": "undefined"}
. It's not possible to read (/get
) this value.
Comfort temperature (numeric)
Comfort temperature. Value can be found in the published state on the comfort_temperature
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"comfort_temperature": NEW_VALUE}
. The minimal value is 0
and the maximum value is 30
. The unit of this value is °C
.
Eco temperature (numeric)
Eco temperature. Value can be found in the published state on the eco_temperature
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"eco_temperature": NEW_VALUE}
. The minimal value is 0
and the maximum value is 35
. The unit of this value is °C
.
Local temperature calibration (numeric)
Value can be found in the published state on the local_temperature_calibration
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"local_temperature_calibration": NEW_VALUE}
. The minimal value is -5.5
and the maximum value is 5.5
. The unit of this value is °C
.
Child lock (binary)
Enables/disables physical input on the device. Value can be found in the published state on the child_lock
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"child_lock": NEW_VALUE}
. If value equals LOCK
child lock is ON, if UNLOCK
OFF.
Window detection (binary)
Value can be found in the published state on the window_detection
property. It's not possible to read (/get
) or write (/set
) this value. If value equals ON
window detection is ON, if OFF
OFF.
Window detection temperature (numeric)
Value can be found in the published state on the window_detection_temperature
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"window_detection_temperature": NEW_VALUE}
. The minimal value is 0
and the maximum value is 30
. The unit of this value is °C
.
Window detection time (numeric)
Value can be found in the published state on the window_detection_time
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"window_detection_time": NEW_VALUE}
. The minimal value is 0
and the maximum value is 60
. The unit of this value is m
.
Boost heating (binary)
Value can be found in the published state on the boost_heating
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"boost_heating": NEW_VALUE}
. If value equals ON
boost heating is ON, if OFF
OFF.
Boost time (numeric)
Value can be found in the published state on the boost_time
property. It's not possible to read (/get
) or write (/set
) this value.
Error status (numeric)
Error status. Value can be found in the published state on the error_status
property. It's not possible to read (/get
) or write (/set
) this value.
Programming mode1 (composite)
Schedule MODE ⏱ - In this mode, the device executes a preset holiday programming temperature time and temperature..
holidays_schedule
(text)
Programming mode2 (composite)
Auto MODE ⏱ - In this mode, the device executes a preset week programming temperature time and temperature. .
monday_schedule
(text)tuesday_schedule
(text)wednesday_schedule
(text)thursday_schedule
(text)friday_schedule
(text)saturday_schedule
(text)sunday_schedule
(text)
