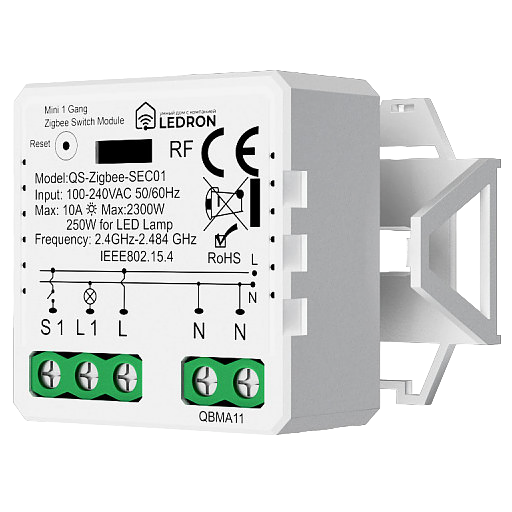

Svetomaniya QS-Zigbee-SEC01-Mod


Model	QS-Zigbee-SEC01-Mod
Vendor	Svetomaniya
Description	Smart light switch module 1 gang
Exposes	switch (state), power_on_behavior, switch_actions, switch_type, operation_mode, scene_id, group_id, min_level, max_level, action

OTA updates

This device supports OTA updates, for more information see OTA updates.

Options

How to use device type specific configuration

state_action: State actions will also be published as 'action' when true (default false). The value must be true or false
simulated_brightness: Simulate a brightness value. If this device provides a brightness_move_up or brightness_move_down action it is possible to specify the update interval and delta. The action_brightness_delta indicates the delta for each interval. Example:

simulated_brightness:
  delta: 20 # delta per interval, default = 20
  interval: 200 # interval in milliseconds, default = 200

The current state of this switch is in the published state under the state property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "ON"}, {"state": "OFF"} or {"state": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state": ""}.

On with timed off

When setting the state to ON, it might be possible to specify an automatic shutoff after a certain amount of time. To do this add an additional property on_time to the payload which is the time in seconds the state should remain on. Additionally an off_wait_time property can be added to the payload to specify the cooldown time in seconds when the switch will not answer to other on with timed off commands. Support depends on the switch firmware. Some devices might require both on_time and off_wait_time to work Examples : {"state" : "ON", "on_time": 300}, {"state" : "ON", "on_time": 300, "off_wait_time": 120}.

Power-on behavior (enum)

Controls the behavior when the device is powered on after power loss. Value can be found in the published state on the power_on_behavior property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"power_on_behavior": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"power_on_behavior": NEW_VALUE}. The possible values are: off, on, toggle, previous.

Switch actions (enum)

Actions switch. Value can be found in the published state on the switch_actions property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"switch_actions": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch_actions": NEW_VALUE}. The possible values are: off, on.

Switch type (enum)

Switch type. Value can be found in the published state on the switch_type property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"switch_type": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch_type": NEW_VALUE}. The possible values are: toggle, momentary, multifunction, brightness_level, scene.

Operation mode (enum)

Relay decoupled. Value can be found in the published state on the operation_mode property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"operation_mode": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"operation_mode": NEW_VALUE}. The possible values are: control_relay, decoupled.

Scene id (numeric)

Scene ID. Value can be found in the published state on the scene_id property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"scene_id": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"scene_id": NEW_VALUE}. The minimal value is 0 and the maximum value is 255.

Group id (numeric)

Group ID for scenes. Value can be found in the published state on the group_id property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"group_id": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"group_id": NEW_VALUE}. The minimal value is 0 and the maximum value is 65527.

Min level (numeric)

Minimum level when decreasing. Value can be found in the published state on the min_level property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"min_level": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"min_level": NEW_VALUE}. The minimal value is 1 and the maximum value is 255.

Max level (numeric)

Maximum level when increasing. Value can be found in the published state on the max_level property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"max_level": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"max_level": NEW_VALUE}. The minimal value is 1 and the maximum value is 255.

Action (enum)

Triggered action (e.g. a button click). Value can be found in the published state on the action property. It's not possible to read (/get) or write (/set) this value. The possible values are: on, off, toggle, hold, single, double, triple, quadruple, quintuple, release, brightness_move_to_level, brightness_move_up, brightness_move_down, brightness_step_up, brightness_step_down, brightness_stop, recall, store, add, remove, remove_all.
