Xiaomi QBKG22LM #

Model QBKG22LM
Vendor Xiaomi
Description Aqara D1 2 gang smart wall switch (no neutral wire)
Exposes switch (state), action, linkquality

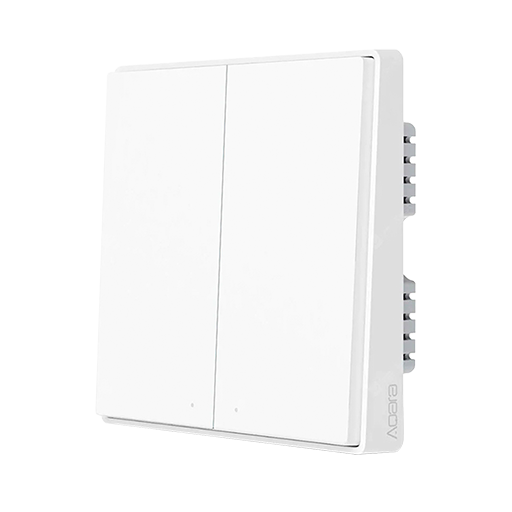

Picture Xiaomi QBKG22LM

Notes #

Deprecated click event #

By default this device exposes a deprecated click event. It’s recommended to use the action event instead.

To disable the click event, set legacy: false for this device in configuration.yaml. Example:

devices:
  '0x12345678':
    friendly_name: my_device
    legacy: false

Pairing #

Press and hold the button on the device for +- 10 seconds (until the blue light starts blinking and stops blinking), release and wait.

You may have to unpair the switch from an existing coordinator before the pairing process will start.

Device type specific configuration #

How to use device type specific configuration

Decoupled mode #

Decoupled mode allows to turn wired switch into wireless button with separately controlled relay. This might be useful to assign some custom actions to buttons and control relay remotely. This command also allows to redefine which button controls which relay for the double switch (not supported for QBKG25LM).

Topic zigbee2mqtt/FRIENDLY_NAME/system/set should be used to modify operation mode.

NOTE: For QBKG25LM instead of system use left, center or right and leave out the button property in the payload.

Payload:

{
  "operation_mode": {
    "button": "single"|"left"|"right", // Always use single for a single switch
    "state": "VALUE"
  }
}
Values Description
control_relay Button directly controls relay (for single switch and QBKG25LM)
control_left_relay Button directly controls left relay (for double switch, not supported for QBKG25LM)
control_right_relay Button directly controls right relay (for double switch, not supported for QBKG25LM)
decoupled Button doesn’t control any relay

zigbee2mqtt/FRIENDLY_NAME/system/get to read current mode.

Payload:

{
  "operation_mode": {
    "button": "single"|"left"|"right" // Always use single for a single switch
  }
}

Response will be sent to zigbee2mqtt/FRIENDLY_NAME, example: {"operation_mode_right":"control_right_relay"}

Exposes #

Switch (left endpoint) #

The current state of this switch is in the published state under the state_left property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_left": "ON"}, {"state_left": "OFF"} or {"state_left": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state_left": ""}.

Switch (right endpoint) #

The current state of this switch is in the published state under the state_right property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_right": "ON"}, {"state_right": "OFF"} or {"state_right": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state_right": ""}.

Action (enum) #

Triggered action (e.g. a button click). Value can be found in the published state on the action property. It’s not possible to read (/get) or write (/set) this value. The possible values are: single.

Linkquality (numeric) #

Link quality (signal strength). Value can be found in the published state on the linkquality property. It’s not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.

Manual Home Assistant configuration #

Although Home Assistant integration through MQTT discovery is preferred, manual integration is possible with the following configuration:

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    icon: "mdi:toggle-switch"
    value_template: "{{ value_json.click }}"

switch:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    payload_off: "OFF"
    payload_on: "ON"
    value_template: "{{ value_json.state_left }}"
    command_topic: "zigbee2mqtt/<FRIENDLY_NAME>/left/set"

switch:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    payload_off: "OFF"
    payload_on: "ON"
    value_template: "{{ value_json.state_right }}"
    command_topic: "zigbee2mqtt/<FRIENDLY_NAME>/right/set"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.action }}"
    icon: "mdi:gesture-double-tap"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.linkquality }}"
    unit_of_measurement: "lqi"
    icon: "mdi:signal"
