ZSVIOT PN16

ModelPN16
VendorZSVIOT
Description16-way controller
Exposespower_on_behavior, switch (state), switch_type, switch_mode

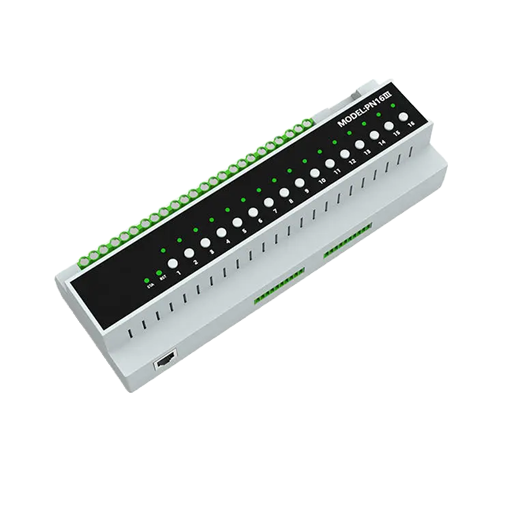

PictureZSVIOT PN16

Notes

The Power-on behavior: 'Off' option does not work on the first four channels(1-4). After power is restored, if any of the first four relays were switched on during the power loss, they will remain 'on' even though the LEDs on the device are off and Zigbee2MQTT shows them as off.

Exposes

Power-on behavior (enum)

Controls the behavior when the device is powered on after power loss. Value can be found in the published state on the power_on_behavior property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"power_on_behavior": NEW_VALUE}. The possible values are: off, on, previous.

Switch (all endpoint)

The current state of this switch is in the published state under the state_all property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_all": "ON"}, {"state_all": "OFF"} or {"state_all": "TOGGLE"}. It's not possible to read (/get) this value.

Switch type 1-8 channels (enum, l1_l8 endpoint)

Type of the switch. Value can be found in the published state on the switch_type_l1_l8 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"switch_type_l1_l8": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch_type_l1_l8": NEW_VALUE}. The possible values are: toggle, state, momentary.

Switch (l1 endpoint)

The current state of this switch is in the published state under the state_l1 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l1": "ON"}, {"state_l1": "OFF"} or {"state_l1": "TOGGLE"}. It's not possible to read (/get) this value.

Switch (l2 endpoint)

The current state of this switch is in the published state under the state_l2 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l2": "ON"}, {"state_l2": "OFF"} or {"state_l2": "TOGGLE"}. It's not possible to read (/get) this value.

Switch (l3 endpoint)

The current state of this switch is in the published state under the state_l3 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l3": "ON"}, {"state_l3": "OFF"} or {"state_l3": "TOGGLE"}. It's not possible to read (/get) this value.

Switch (l4 endpoint)

The current state of this switch is in the published state under the state_l4 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l4": "ON"}, {"state_l4": "OFF"} or {"state_l4": "TOGGLE"}. It's not possible to read (/get) this value.

Switch (l5 endpoint)

The current state of this switch is in the published state under the state_l5 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l5": "ON"}, {"state_l5": "OFF"} or {"state_l5": "TOGGLE"}. It's not possible to read (/get) this value.

Switch (l6 endpoint)

The current state of this switch is in the published state under the state_l6 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l6": "ON"}, {"state_l6": "OFF"} or {"state_l6": "TOGGLE"}. It's not possible to read (/get) this value.

Switch (l7 endpoint)

The current state of this switch is in the published state under the state_l7 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l7": "ON"}, {"state_l7": "OFF"} or {"state_l7": "TOGGLE"}. It's not possible to read (/get) this value.

Switch (l8 endpoint)

The current state of this switch is in the published state under the state_l8 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l8": "ON"}, {"state_l8": "OFF"} or {"state_l8": "TOGGLE"}. It's not possible to read (/get) this value.

Switch type 9-16 channels (enum, l9_l16 endpoint)

Type of the switch. Value can be found in the published state on the switch_type_l9_l16 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"switch_type_l9_l16": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch_type_l9_l16": NEW_VALUE}. The possible values are: toggle, state, momentary.

Switch (l9 endpoint)

The current state of this switch is in the published state under the state_l9 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l9": "ON"}, {"state_l9": "OFF"} or {"state_l9": "TOGGLE"}. It's not possible to read (/get) this value.

Switch (l10 endpoint)

The current state of this switch is in the published state under the state_l10 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l10": "ON"}, {"state_l10": "OFF"} or {"state_l10": "TOGGLE"}. It's not possible to read (/get) this value.

Mode 11-12 channels (enum, l11_l12 endpoint)

Sets the mode of the switch to act as a switch or as a curtain controller. Value can be found in the published state on the switch_mode_l11_l12 property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch_mode_l11_l12": NEW_VALUE}. The possible values are: switch, curtain.

Switch (l11 endpoint)

The current state of this switch is in the published state under the state_l11 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l11": "ON"}, {"state_l11": "OFF"} or {"state_l11": "TOGGLE"}. It's not possible to read (/get) this value.

Switch (l12 endpoint)

The current state of this switch is in the published state under the state_l12 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l12": "ON"}, {"state_l12": "OFF"} or {"state_l12": "TOGGLE"}. It's not possible to read (/get) this value.

Mode 13-14 channels (enum, l13_l14 endpoint)

Sets the mode of the switch to act as a switch or as a curtain controller. Value can be found in the published state on the switch_mode_l13_l14 property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch_mode_l13_l14": NEW_VALUE}. The possible values are: switch, curtain.

Switch (l13 endpoint)

The current state of this switch is in the published state under the state_l13 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l13": "ON"}, {"state_l13": "OFF"} or {"state_l13": "TOGGLE"}. It's not possible to read (/get) this value.

Switch (l14 endpoint)

The current state of this switch is in the published state under the state_l14 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l14": "ON"}, {"state_l14": "OFF"} or {"state_l14": "TOGGLE"}. It's not possible to read (/get) this value.

Mode 15-16 channels (enum, l15_l16 endpoint)

Sets the mode of the switch to act as a switch or as a curtain controller. Value can be found in the published state on the switch_mode_l15_l16 property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch_mode_l15_l16": NEW_VALUE}. The possible values are: switch, curtain.

Switch (l15 endpoint)

The current state of this switch is in the published state under the state_l15 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l15": "ON"}, {"state_l15": "OFF"} or {"state_l15": "TOGGLE"}. It's not possible to read (/get) this value.

Switch (l16 endpoint)

The current state of this switch is in the published state under the state_l16 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l16": "ON"}, {"state_l16": "OFF"} or {"state_l16": "TOGGLE"}. It's not possible to read (/get) this value.
