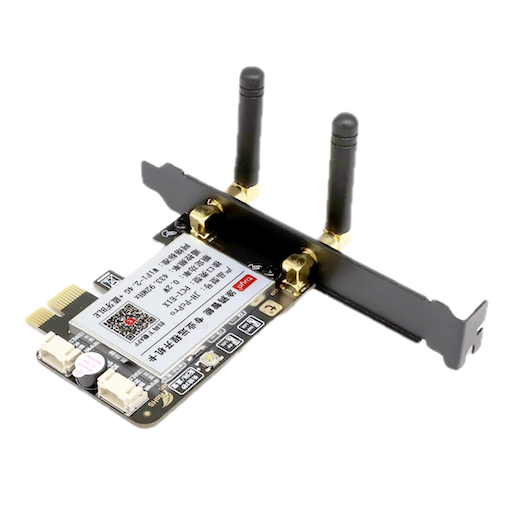

WETEN PCI E

Model	PCI E
Vendor	WETEN
Description	Remote Control PCI E Card for PC
Exposes	switch (state), restart_mode, rf_pairing, rf_remote_control, buzzer_feedback, power_on_behavior, child_lock, linkquality
White-label	Weten Tuya PRO

Notes

Pairing

Long press the reset button for 5s until the LED indicator flashes three times, which means the device has entered pairing mode. If buzzer feedback is on then you'll also hear 3 short beeps. The reset button can be found on the PCIe card.

Exposes

Switch

The current state of this switch is in the published state under the state property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "ON"}, {"state": "OFF"} or {"state": "TOGGLE"}. It's not possible to read (/get) this value.

Restart mode (enum)

Restart Mode. Value can be found in the published state on the restart_mode property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"restart_mode": NEW_VALUE}. The possible values are: restart, force restart, –.

Rf pairing (binary)

Enables/disables RF 433 remote pairing mode. Value can be found in the published state on the rf_pairing property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"rf_pairing": NEW_VALUE}. If value equals ON rf pairing is ON, if OFF OFF.

Rf remote control (binary)

Enables/disables RF 433 remote control. Value can be found in the published state on the rf_remote_control property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"rf_remote_control": NEW_VALUE}. If value equals ON rf remote control is ON, if OFF OFF.

Buzzer feedback (binary)

Enable buzzer feedback.. Value can be found in the published state on the buzzer_feedback property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"buzzer_feedback": NEW_VALUE}. If value equals ON buzzer feedback is ON, if OFF OFF.

Power on behavior (enum)

Power On Behavior. Value can be found in the published state on the power_on_behavior property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"power_on_behavior": NEW_VALUE}. The possible values are: on, off.

Child lock (binary)

Enables/disables physical input on the device. Value can be found in the published state on the child_lock property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"child_lock": NEW_VALUE}. If value equals LOCK child lock is ON, if UNLOCK OFF.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
