NEO NAS-AB02B2

ModelNAS-AB02B2
VendorNEO
DescriptionAlarm
Exposesbattery_low, alarm, melody, duration, volume, battpercentage

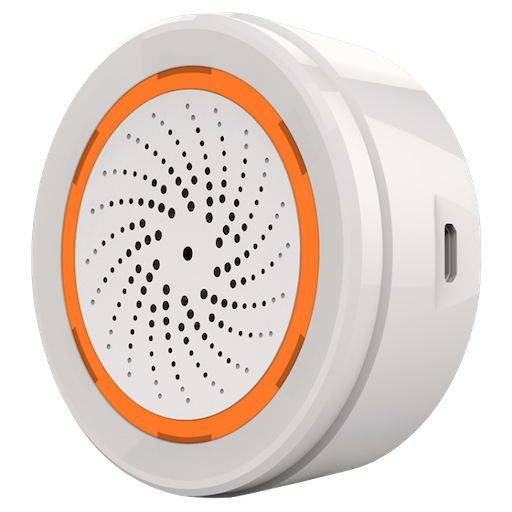

PictureNEO NAS-AB02B2

Notes

Alarm melodies sounds/tunes: 1 - fuer elise 2 - big ben 3 - ring ring 4 - lone ranger 5 - turkish march 6 - high pitch siren 7 - red alert 8 - cricket 9 - beep beep 10 - dogs 11 - police 12 - chime 13 - phone ring 14 - firetruck 15 - clock chime 16 - alarm clock 17 - psycho 18 - doorbell

Exposes

Battery low (binary)

Indicates if the battery of this device is almost empty. Value can be found in the published state on the battery_low property. It's not possible to read (/get) or write (/set) this value. If value equals true battery low is ON, if false OFF.

Alarm (binary)

Value can be found in the published state on the alarm property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"alarm": NEW_VALUE}. If value equals true alarm is ON, if false OFF.

Melody (enum)

Value can be found in the published state on the melody property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"melody": NEW_VALUE}. The possible values are: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18.

Duration (numeric)

Value can be found in the published state on the duration property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"duration": NEW_VALUE}. The minimal value is 0 and the maximum value is 1800. The unit of this value is s.

Volume (enum)

Value can be found in the published state on the volume property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"volume": NEW_VALUE}. The possible values are: low, medium, high.

Battpercentage (numeric)

Value can be found in the published state on the battpercentage property. It's not possible to read (/get) or write (/set) this value. The unit of this value is %.
