Aqara MCCGQ13LM

ModelMCCGQ13LM
VendorAqara
DescriptionDoor and window sensor P1
Exposescontact, battery, voltage, tamper, detection_distance, linkquality

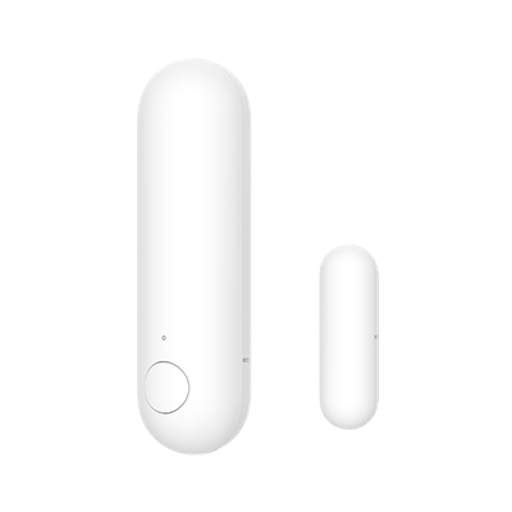

PictureAqara MCCGQ13LM

Pairing

Press and hold the reset button on the device for +- 5 seconds (until the blue light starts blinking). After this the device will automatically join. If this doesn't work, after starting the pairing process with the long press, keep short pressing the button approximately once a second until the interview process is finished.

Battery

Uses a CR123A battery

Exposes

Contact (binary)

Indicates if the contact is closed (= true) or open (= false). Value can be found in the published state on the contact property. It's not possible to read (/get) or write (/set) this value. If value equals false contact is ON, if true OFF.

Battery (numeric)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Voltage (numeric)

Voltage of the battery in millivolts. Value can be found in the published state on the voltage property. It's not possible to read (/get) or write (/set) this value. The unit of this value is mV.

Tamper (binary)

Indicates whether the device is tampered. Value can be found in the published state on the tamper property. It's not possible to read (/get) or write (/set) this value. If value equals true tamper is ON, if false OFF.

Detection distance (enum)

The sensor will be considered "off" within the set distance. Please press the device button before setting. Value can be found in the published state on the detection_distance property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"detection_distance": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"detection_distance": NEW_VALUE}. The possible values are: 10mm, 20mm, 30mm.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
