Xiaomi MCCGQ01LM #

Model MCCGQ01LM
Vendor Xiaomi
Description MiJia door & window contact sensor
Exposes battery, contact, voltage, linkquality

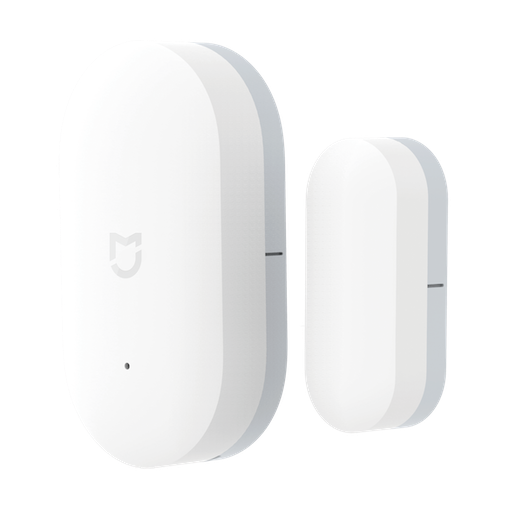

Picture Xiaomi MCCGQ01LM

Notes #

Pairing #

Press and hold the reset button on the device for +- 5 seconds (until the blue light starts blinking). The reset button is the small hole in the side of the device - you will need a pin or needle to push into the small hole. After this the device will automatically join.

Troubleshooting: device stops sending messages/disconnects from network #

Since Xiaomi devices do not fully comply to the Zigbee standard, it sometimes happens that they disconnect from the network. Most of the times this happens because of the following reasons:

More detailed information about this can be found here.

OpenHAB integration and configuration #

In OpenHAB you need the MQTT Binding to be installed. It is possible to add this sensor as a generic MQTT thing, but here it is described how to add the sensor manually via an editor.

To make the following configuration work it is necessary to enable the experimental attribute output in the configuration.yaml.

experimental:
    output: attribute

Thing #

To add this Xiaomi MCCGQ01LM MiJia door & window contact sensor as Thing it is necessary to embed the Thing into a bridge definition of a MQTT broker. Please consider that for the door window sensor OPEN is false (no contact) and CLOSED is true (contact). So make sure that on(OPEN) = “false” and off(CLOSED) = “true”.

Bridge mqtt:broker:zigbeeBroker [ host="YourHostname", secure=false, username="your_username", password="your_password" ]
{
    Thing topic MijiaDoorSensor "MiJia door & window contact sensor"  @ "Your room"
    {
        Channels:
            Type contact  : status      "status"      [ stateTopic = "zigbee2mqtt/<FRIENDLY_NAME>/contact", on="false", off="true" ]
            Type number   : voltage     "voltage"     [ stateTopic = "zigbee2mqtt/<FRIENDLY_NAME>/voltage" ]
            Type number   : battery     "battery"     [ stateTopic = "zigbee2mqtt/<FRIENDLY_NAME>/battery" ]
            Type number   : linkquality "linkquality" [ stateTopic = "zigbee2mqtt/<FRIENDLY_NAME>/linkquality" ]
            /****************************************************************************************************
            If you want to know when the sensor has been last changed you can add to your configuration.yaml:
            advanced:
                last_seen: ISO_8601_local

            and add another channel:
            ****************************************************************************************************/
            Type datetime : last_change "last change" [ stateTopic = "zigbee2mqtt/<FRIENDLY_NAME>/last_seen" ]
    }
}

Items #

Contact  door_window_sensor_isOpen      "open status" <door>                                {channel="mqtt:topic:zigbeeBroker:MijiaDoorSensor:status"}
Number   door_window_sensor_VOLTAGE     "voltage [%d mV]"                                   {channel="mqtt:topic:zigbeeBroker:MijiaDoorSensor:voltage"}
Number   door_window_sensor_BATTERY     "battery [%.1f %%]" <battery>                       {channel="mqtt:topic:zigbeeBroker:MijiaDoorSensor:battery"}
Number   door_window_sensor_LINKQUALITY "link qualitiy [%d]" <qualityofservice>             {channel="mqtt:topic:zigbeeBroker:MijiaDoorSensor:linkquality"}
/* See comment above */
DateTime door_window_sensor_last_change "last change [%1$td.%1$tm.%1$tY %1$tH:%1$tM:%1$tS]" {channel="mqtt:topic:zigbeeBroker:MijiaDoorSensor:last_change"}

Exposes #

Battery (numeric) #

Remaining battery in %. Value can be found in the published state on the battery property. It’s not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Contact (binary) #

Indicates if the contact is closed (= true) or open (= false). Value can be found in the published state on the contact property. It’s not possible to read (/get) or write (/set) this value. If value equals false contact is ON, if true OFF.

Voltage (numeric) #

Voltage of the battery in millivolts. Value can be found in the published state on the voltage property. It’s not possible to read (/get) or write (/set) this value. The unit of this value is mV.

Linkquality (numeric) #

Link quality (signal strength). Value can be found in the published state on the linkquality property. It’s not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.

Manual Home Assistant configuration #

Although Home Assistant integration through MQTT discovery is preferred, manual integration is possible with the following configuration:

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.battery }}"
    unit_of_measurement: "%"
    device_class: "battery"
    state_class: "measurement"

binary_sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.contact }}"
    payload_on: false
    payload_off: true
    device_class: "door"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.voltage }}"
    unit_of_measurement: "mV"
    device_class: "voltage"
    enabled_by_default: false
    state_class: "measurement"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.linkquality }}"
    unit_of_measurement: "lqi"
    enabled_by_default: false
    icon: "mdi:signal"
    state_class: "measurement"
