Manhot MB60L-ZG-ZT-TY
Model | MB60L-ZG-ZT-TY |
Vendor | Manhot |
Description | Smart blinds motor |
Exposes | battery, cover (state, position), set_limits, motor_direction, tilt_mode, child_lock |

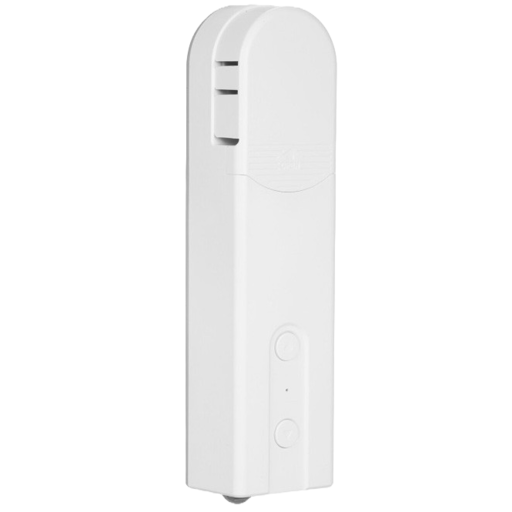

Picture | ![]() |
Exposes
Battery (numeric)
Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery
property. It's not possible to read (/get
) or write (/set
) this value. The minimal value is 0
and the maximum value is 100
. The unit of this value is %
.
Cover
The current state of this cover is in the published state under the state
property (value is OPEN
or CLOSE
). To control this cover publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"state": "OPEN"}
, {"state": "CLOSE"}
, {"state": "STOP"}
. It's not possible to read (/get
) this value. To change the position publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"position": VALUE}
where VALUE
is a number between 0
and 100
.
Set limits (enum)
Value can be found in the published state on the set_limits
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"set_limits": NEW_VALUE}
. The possible values are: up
, down
, reset
.
Motor direction (enum)
Motor Steering. Value can be found in the published state on the motor_direction
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"motor_direction": NEW_VALUE}
. The possible values are: normal
, reversed
.
Tilt mode (binary)
Step movement. Value can be found in the published state on the tilt_mode
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"tilt_mode": NEW_VALUE}
. If value equals ON
tilt mode is ON, if OFF
OFF.
Child lock (binary)
Child Lock. Value can be found in the published state on the child_lock
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"child_lock": NEW_VALUE}
. If value equals ON
child lock is ON, if OFF
OFF.
