Zemismart LXZB-12A

Model LXZB-12A
Vendor Zemismart
Description RGB LED downlight
Supports on/off, brightness, color temperature, color xy

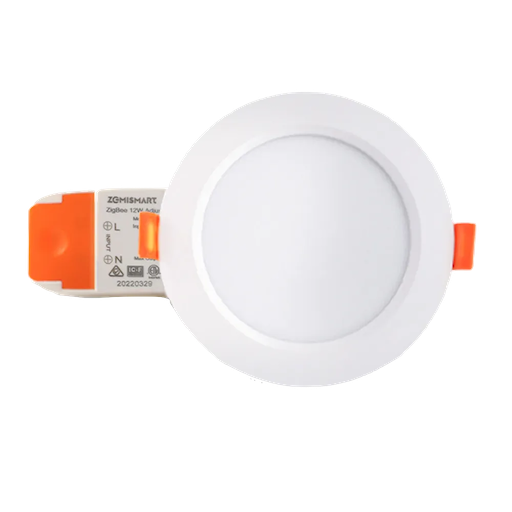

Picture Zemismart LXZB-12A

Notes

Device type specific configuration

How to use device type specific configuration

Manual Home Assistant configuration

Although Home Assistant integration through MQTT discovery is preferred, manual integration is possbile with the following configuration:

light:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    brightness: true
    color_temp: true
    xy: true
    schema: "json"
    command_topic: "zigbee2mqtt/<FRIENDLY_NAME>/set"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    unit_of_measurement: "-"
    value_template: "{{ value_json.linkquality }}"
