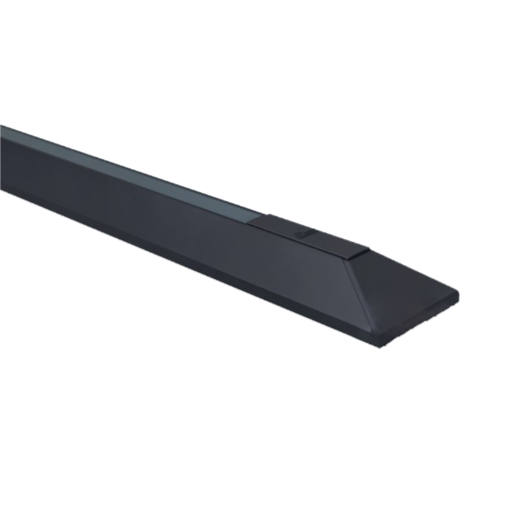

Gumax LST103

Model	LST103
Vendor	Gumax
Description	Gumax lighting system
Exposes	light (state, brightness, color_temp, color_temp_startup, color_xy, color_hs), effect, power_on_behavior, linkquality

Notes

Pairing

1. Power the device for at least 10 seconds.
2. Cut the power for 1 second.
3. Power on the device for 1 second.
4. Repeat step 2-3 four times in total.
5. The lighting system should flash all colours and then return to neutral white. The lighting system is now reset, and in pairing mode.

Note: It might help to put a routing device fairly close to the lighting system (within 2-3 meters) if pairing doesn't seem to work.

See this video for mouting instructions, including pairing and resetting.

Options

How to use device type specific configuration

• transition: Controls the transition time (in seconds) of on/off, brightness, color temperature (if applicable) and color (if applicable) changes. Defaults to 0 (no transition). The value must be a number with a minimum value of 0

• color_sync: When enabled colors will be synced, e.g. if the light supports both color x/y and color temperature a conversion from color x/y to color temperature will be done when setting the x/y color (default true). The value must be true or false

• state_action: State actions will also be published as 'action' when true (default false). The value must be true or false

Exposes

Light

This light supports the following features: state, brightness, color_temp, color_temp_startup, color_xy, color_hs.

• state: To control the state publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "ON"}, {"state": "OFF"} or {"state": "TOGGLE"}. To read the state send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"state": ""}.
• brightness: To control the brightness publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"brightness": VALUE} where VALUE is a number between 0 and 254. To read the brightness send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"brightness": ""}.
• color_temp: To control the color temperature (in reciprocal megakelvin a.k.a. mired scale) publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"color_temp": VALUE} where VALUE is a number between 153 and 370, the higher the warmer the color. To read the color temperature send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"color_temp": ""}. Besides the numeric values the following values are accepted: coolest, cool, neutral, warmest.
• color_temp_startup: To set the startup color temperature (in reciprocal megakelvin a.k.a. mired scale) publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"color_temp_startup": VALUE} where VALUE is a number between 153 and 370, the higher the warmer the color. To read the startup color temperature send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"color_temp_startup": ""}. Besides the numeric values the following values are accepted: coolest, cool, neutral, warmest, previous.
• color_xy: To control the XY color (CIE 1931 color space) publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"color": {"x": X_VALUE, "y": Y_VALUE}} (e.g. {"color":{"x":0.123,"y":0.123}}). To read the XY color send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"color":{"x":"","y":""}}. Alternatively it is possible to set the XY color via RGB:
  • {"color": {"r": R, "g": G, "b": B}} e.g. {"color":{"r":46,"g":102,"b":150}}
  • {"color": {"rgb": "R,G,B"}} e.g. {"color":{"rgb":"46,102,150"}}
  • {"color": {"hex": HEX}} e.g. {"color":{"hex":"#547CFF"}}
• color_hs: To control the hue/saturation (color) publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"color": {"hue": HUE, "saturation": SATURATION}} (e.g. {"color":{"hue":360,"saturation":100}}). To read the hue/saturation send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"color":{"hue":"","saturation":""}}. Alternatively it is possible to set the hue/saturation via:
  • HSB space (hue, saturation, brightness): {"color": {"h": H, "s": S, "b": B}} e.g. {"color":{"h":360,"s":100,"b":100}} or {"color": {"hsb": "H,S,B"}} e.g. {"color":{"hsb":"360,100,100"}}
  • HSV space (hue, saturation, value):{"color": {"h": H, "s": S, "v": V}} e.g. {"color":{"h":360,"s":100,"v":100}} or {"color": {"hsv": "H,S,V"}} e.g. {"color":{"hsv":"360,100,100"}}
  • HSL space (hue, saturation, lightness){"color": {"h": H, "s": S, "l": L}} e.g. {"color":{"h":360,"s":100,"l":100}} or {"color": {"hsl": "H,S,L"}} e.g. {"color":{"hsl":"360,100,100"}}

On with timed off

When setting the state to ON, it might be possible to specify an automatic shutoff after a certain amount of time. To do this add an additional property on_time to the payload which is the time in seconds the state should remain on. Additionally an off_wait_time property can be added to the payload to specify the cooldown time in seconds when the light will not answer to other on with timed off commands. Support depends on the light firmware. Some devices might require both on_time and off_wait_time to work Examples : {"state" : "ON", "on_time": 300}, {"state" : "ON", "on_time": 300, "off_wait_time": 120}.

Transition

For all of the above mentioned features it is possible to do a transition of the value over time. To do this add an additional property transition to the payload which is the transition time in seconds. Examples: {"brightness":156,"transition":3}, {"color_temp":241,"transition":1}.

Moving/stepping

Instead of setting a value (e.g. brightness) directly it is also possible to:

• move: this will automatically move the value over time, to stop send value stop or 0.
• step: this will increment/decrement the current value by the given one.

The direction of move and step can be either up or down, provide a negative value to move/step down, a positive value to move/step up. To do this send a payload like below to zigbee2mqtt/FRIENDLY_NAME/set

NOTE: brightness move/step will stop at the minimum brightness and won't turn on the light when it's off. In this case use brightness_move_onoff/brightness_step_onoff

{
  "brightness_move": -40, // Starts moving brightness down at 40 units per second
  "brightness_move": 0, // Stop moving brightness
  "brightness_step": 40 // Increases brightness by 40
  "color_temp_move": 60, // Starts moving color temperature up at 60 units per second
  "color_temp_move": "stop", // Stop moving color temperature
  "color_temp_step": 99, // Increase color temperature by 99
  "hue_move": 40, // Starts moving hue up at 40 units per second, will endlessly loop (allowed value range: -255 till 255)
  "hue_step": -90, // Decrease hue by 90 (allowed value range: -255 till 255)
  "saturation_move": -55, // Starts moving saturation down at -55 units per second (allowed value range: -255 till 255)
  "saturation_step": 66, // Increase saturation by 66 (allowed value range: -255 till 255)
}

Effect (enum)

Triggers an effect on the light (e.g. make light blink for a few seconds). Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"effect": NEW_VALUE}. The possible values are: blink, breathe, okay, channel_change, finish_effect, stop_effect, colorloop, stop_colorloop.

Power-on behavior (enum)

Controls the behavior when the device is powered on after power loss. Value can be found in the published state on the power_on_behavior property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"power_on_behavior": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"power_on_behavior": NEW_VALUE}. The possible values are: off, on, toggle, previous.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
