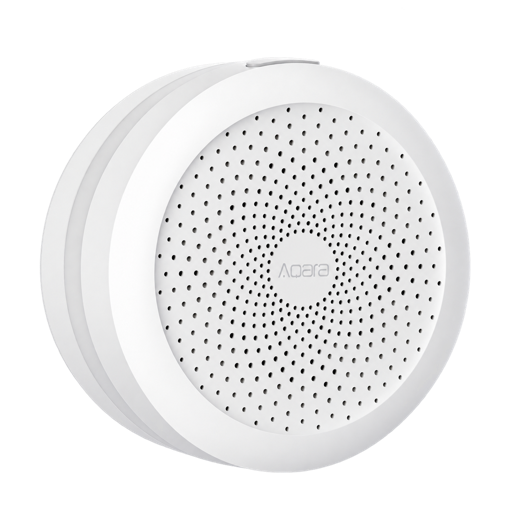

OpenLumi LR-ZHWG11LM

Model	LR-ZHWG11LM
Vendor	OpenLumi
Description	Lumi Router (for Aqara ZHWG11LM)
Exposes	device_temperature

Notes

This device is an Aqara ZHWG11LM gateway with its JN5169 Zigbee module flashed with Lumi Router firmware, allowing it to operate as a Zigbee router.

Firmware

Open source firmware and flashing instructions are available on GitHub.

Pairing

See the reset and pairing instructions.

Options

How to use device type specific configuration

• device_temperature_calibration: Calibrates the device_temperature value (absolute offset), takes into effect on next report of device. The value must be a number.

Exposes

Device temperature (numeric)

Temperature of the device. Value can be found in the published state on the device_temperature property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"device_temperature": ""}. It's not possible to write (/set) this value. The unit of this value is °C.
