Xiaomi JTQJ-BF-01LM/BW #

Model JTQJ-BF-01LM/BW
Vendor Xiaomi
Description MiJia gas leak detector
Exposes gas, battery_low, tamper, sensitivity, gas_density, selftest, linkquality

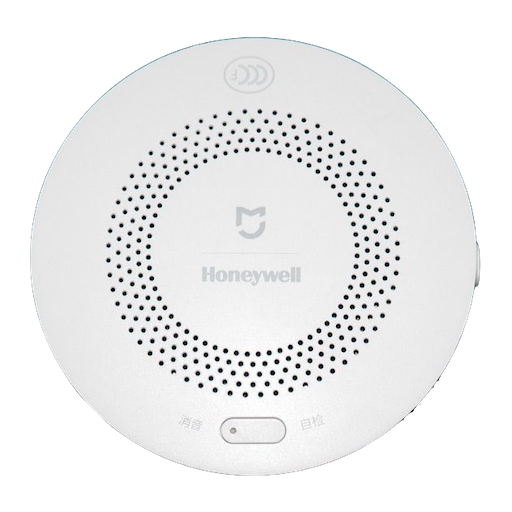

Picture Xiaomi JTQJ-BF-01LM/BW

Notes #

Pairing #

Plug the device in and wait for around 5mins, while it performs its self-tests. A successful self-test is indicated by couple of beeps and a steady green led. Now the device is ready for pairing. To initiate pairing quickly press the button three times in a row.

Sensitivity #

The sensitivity can be changed by publishing to zigbee2mqtt/FRIENDLY_NAME/set {"sensitivity": "SENSITIVITY"} where SENSITIVITY is one of the following values: low, medium, high.

Self-test #

A self-test can be trigged by publishing to zigbee2mqtt/FRIENDLY_NAME/set {"selftest": ""}. If the selftest is executed successfully you will hear the device beep in 30 seconds.

Exposes #

Gas (binary) #

Indicates whether the device detected gas. Value can be found in the published state on the gas property. It’s not possible to read (/get) or write (/set) this value. If value equals true gas is ON, if false OFF.

Battery_low (binary) #

Indicates if the battery of this device is almost empty. Value can be found in the published state on the battery_low property. It’s not possible to read (/get) or write (/set) this value. If value equals true battery_low is ON, if false OFF.

Tamper (binary) #

Indicates whether the device is tampered. Value can be found in the published state on the tamper property. It’s not possible to read (/get) or write (/set) this value. If value equals true tamper is ON, if false OFF.

Sensitivity (enum) #

Value can be found in the published state on the sensitivity property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"sensitivity": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"sensitivity": NEW_VALUE}. The possible values are: low, medium, high.

Gas_density (numeric) #

Value can be found in the published state on the gas_density property. It’s not possible to read (/get) or write (/set) this value.

Selftest (enum) #

Value will not be published in the state. It’s not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"selftest": NEW_VALUE}. The possible values are: ``.

Linkquality (numeric) #

Link quality (signal strength). Value can be found in the published state on the linkquality property. It’s not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.

Manual Home Assistant configuration #

Although Home Assistant integration through MQTT discovery is preferred, manual integration is possible with the following configuration:

binary_sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.gas }}"
    payload_on: true
    payload_off: false
    device_class: "gas"

binary_sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.battery_low }}"
    payload_on: true
    payload_off: false
    device_class: "battery"

binary_sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.tamper }}"
    payload_on: true
    payload_off: false

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.sensitivity }}"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    unit_of_measurement: "-"
    value_template: "{{ value_json.gas_density }}"
    icon: "mdi:google-circles-communities"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    unit_of_measurement: "lqi"
    value_template: "{{ value_json.linkquality }}"
    icon: "mdi:signal"
