iCasa ICZB-IW11D

Model ICZB-IW11D
Vendor iCasa
Description Zigbee 3.0 Dimmer
Supports on/off, brightness

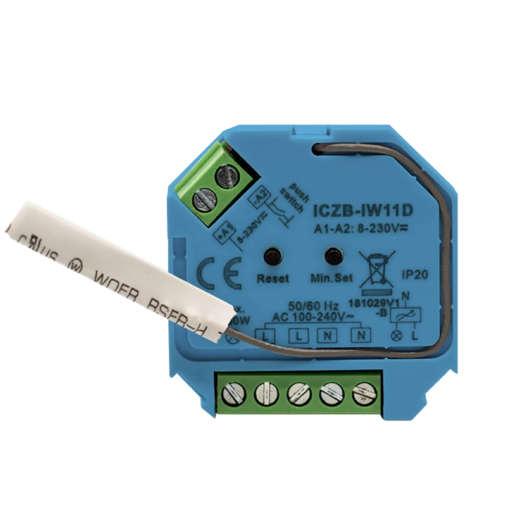

Picture iCasa ICZB-IW11D

Notes

Device type specific configuration

How to use device type specific configuration

Manual Home Assistant configuration

Although Home Assistant integration through MQTT discovery is preferred, manual integration is possbile with the following configuration:

light:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    brightness: true
    schema: "json"
    command_topic: "zigbee2mqtt/<FRIENDLY_NAME>/set"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    unit_of_measurement: "-"
    value_template: "{{ value_json.linkquality }}"
