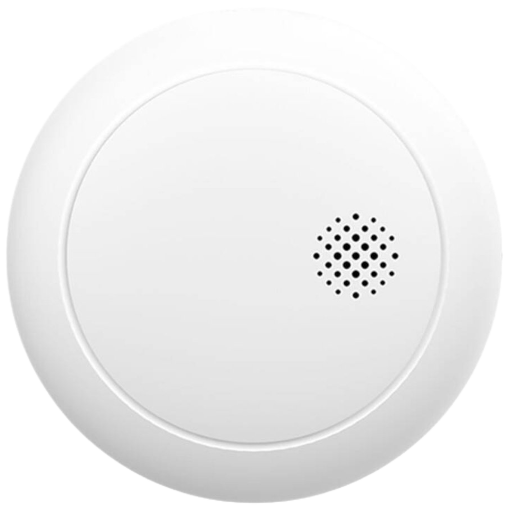

Heiman HS2SA-EF-3.0


Model	HS2SA-EF-3.0
Vendor	Heiman
Description	Smoke detector
Exposes	smoke, battery_low, battery, test

Notes

The Heiman HS2SA-1 Zigbee 3.0 smoke detector gets detected as this model, but exposed functions work properly.

To put the device into Zigbee pairing mode, quickly press the "Test/Hush/Networking" button 3 times within 2 seconds. While in pairing mode, the green LED flashes quickly (5 times per second). Pairing success is indicated by the LED lighting green for 3 seconds and then turning off. If pairing fails, the green LED flashes slowly (2 times per second) for 3 seconds, then turns off. Pairing mode stops automatically after 60 seconds, or can be stopped by pressing the button again.

After successfully pairing the device to your Zigbee network, initiate the test function of the smoke detector by pushing and holding the "Test/Hush/Networking" button for ~1 second. (Please be prepared for the loud noise!) The device state in Z2M only shows all exposed attributes properly after such a test has been performed.

Exposes

Smoke (binary)

Indicates whether the device detected smoke. Value can be found in the published state on the smoke property. It's not possible to read (/get) or write (/set) this value. If value equals true smoke is ON, if false OFF.

Battery low (binary)

Indicates if the battery of this device is almost empty. Value can be found in the published state on the battery_low property. It's not possible to read (/get) or write (/set) this value. If value equals true battery low is ON, if false OFF.

Battery (numeric)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Test (binary)

Indicates whether the device is being tested. Value can be found in the published state on the test property. It's not possible to read (/get) or write (/set) this value. If value equals true test is ON, if false OFF.
