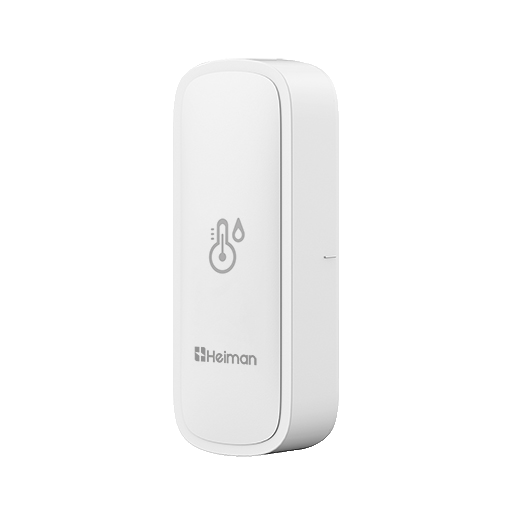

Heiman HS2HT


Model	HS2HT
Vendor	Heiman
Description	Smart temperature & humidity sensor
Exposes	battery, identify, temperature, humidity, alarm_indicator, temperature_offset, humidity_offset, dew_point, vpd, thi, heat_index, reported_packages, rejoin_count, reboot_count

OTA updates

This device supports OTA updates, for more information see OTA updates.

Options

How to use device type specific configuration

temperature_calibration: Calibrates the temperature value (absolute offset), takes into effect on next report of device. The value must be a number.
temperature_precision: Number of digits after decimal point for temperature, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a maximum value of 3
humidity_calibration: Calibrates the humidity value (absolute offset), takes into effect on next report of device. The value must be a number.
humidity_precision: Number of digits after decimal point for humidity, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a maximum value of 3
identify_timeout: Sets the duration of the identification procedure in seconds (i.e., how long the device would flash).The value ranges from 1 to 30 seconds (default: 3). The value must be a number with a minimum value of 1 and with a maximum value of 30

Remaining battery in %. Value can be found in the published state on the battery property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"battery": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Identify (enum)

Initiate device identification. Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"identify": NEW_VALUE}. The possible values are: identify.

Temperature (numeric)

Measured temperature value. Value can be found in the published state on the temperature property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"temperature": ""}. It's not possible to write (/set) this value. The unit of this value is °C.

Humidity (numeric)

Measured relative humidity. Value can be found in the published state on the humidity property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"humidity": ""}. It's not possible to write (/set) this value. The unit of this value is %.

Alarm indicator (binary)

Enable/disable the indicator on product. Value can be found in the published state on the alarm_indicator property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"alarm_indicator": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"alarm_indicator": NEW_VALUE}. If value equals true alarm indicator is ON, if false OFF.

Temperature offset (numeric)

used for temperature offset, unit: ℃. Value can be found in the published state on the temperature_offset property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"temperature_offset": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"temperature_offset": NEW_VALUE}. The minimal value is -15 and the maximum value is 15.

Humidity offset (numeric)

used for humidity offset, unit: RH%. Value can be found in the published state on the humidity_offset property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"humidity_offset": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"humidity_offset": NEW_VALUE}. The minimal value is -15 and the maximum value is 15.

Dew point (numeric)

Dew point. Value can be found in the published state on the dew_point property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"dew_point": ""}. It's not possible to write (/set) this value.

Vpd (numeric)

Saturated vapor pressure. Value can be found in the published state on the vpd property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"vpd": ""}. It's not possible to write (/set) this value.

Thi (numeric)

Temperature humidity index. Value can be found in the published state on the thi property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"thi": ""}. It's not possible to write (/set) this value.

Heat index (numeric)

Heat index. Value can be found in the published state on the heat_index property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"heat_index": ""}. It's not possible to write (/set) this value.

Reported packages (numeric)

for diagnostic purpose, how many zigbee packages has the reported in a day.. Value can be found in the published state on the reported_packages property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"reported_packages": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 60000.

Rejoin count (numeric)

for diagnostic purpose, how many times has the product rejoined to zigbee network.. Value can be found in the published state on the rejoin_count property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"rejoin_count": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 60000.

Reboot count (numeric)

for diagnostic purpose, how many times has the product rebooted.. Value can be found in the published state on the reboot_count property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"reboot_count": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 60000.
