VSmart HS-SEDR00ZB-VNM

ModelHS-SEDR00ZB-VNM
VendorVSmart
DescriptionDoor/window sensor
Exposescontact, battery_low, tamper

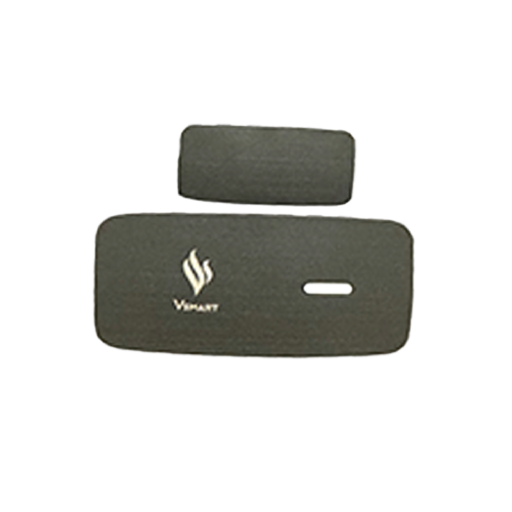

PictureVSmart HS-SEDR00ZB-VNM

Notes

Pairing

Put the device in pairing mode by pressing and holding the button on the device for 3 seconds until the LED indicator flashes rapidly.

Reset

To reset the device, press and hold the button for 10 seconds until the LED indicator flashes 3 times.

Installation

  • Remove the magnetic part from the main unit
  • Install the main unit on the door/window frame
  • Install the magnetic part on the door/window
  • Ensure the distance between the two parts is less than 2cm when closed

Exposes

Contact (binary)

Indicates whether the device is opened or closed. Value can be found in the published state on the contact property. It's not possible to read (/get) or write (/set) this value. If value equals false contact is ON, if true OFF.

Battery low (binary)

Indicates whether the battery of the device is almost empty. Value can be found in the published state on the battery_low property. It's not possible to read (/get) or write (/set) this value. If value equals true battery low is ON, if false OFF.

Tamper (binary)

Indicates whether the device is tampered. Value can be found in the published state on the tamper property. It's not possible to read (/get) or write (/set) this value. If value equals true tamper is ON, if false OFF.
