Siterwell GS361A-H04 #

Model GS361A-H04
Vendor Siterwell
Description Radiator valve with thermostat
Exposes lock (state), switch (state), battery, position, climate (current_heating_setpoint, local_temperature, system_mode, running_state), linkquality

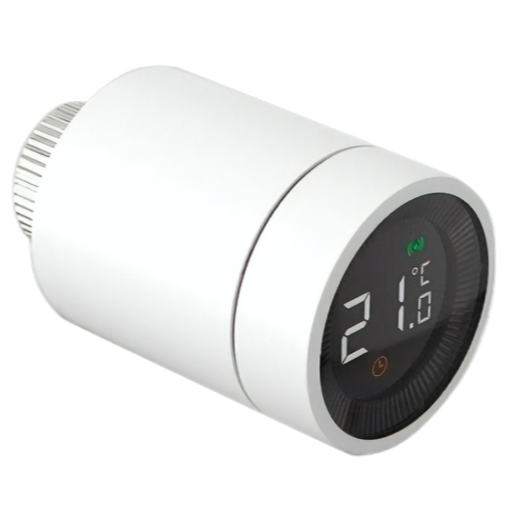

Picture Siterwell GS361A-H04
White-label Essentials 120112, TuYa GTZ02, Revolt NX-4911

Notes #

Installing the TRV #

Pairing #

If you get a warning that the model is undefined, which might happen after removing the device. Try removing it from the network again while in pairing mode.

Exposes #

Lock #

The current state of this lock is in the published state under the child_lock property (value is LOCK or UNLOCK). To control this lock publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"child_lock": "LOCK"} or {"child_lock": "UNLOCK"}. To read the current state of this lock publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"child_lock": ""}.

Switch #

The current state of this switch is in the published state under the window_detection property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"window_detection": "ON"}, {"window_detection": "OFF"} or {"window_detection": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"window_detection": ""}.

Battery (numeric) #

Remaining battery in %. Value can be found in the published state on the battery property. It’s not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Switch #

The current state of this switch is in the published state under the valve_detection property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"valve_detection": "ON"}, {"valve_detection": "OFF"} or {"valve_detection": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"valve_detection": ""}.

Position (numeric) #

Position. Value can be found in the published state on the position property. It’s not possible to read (/get) or write (/set) this value. The unit of this value is %.

Climate #

This climate device supports the following features: current_heating_setpoint, local_temperature, system_mode, running_state.

Linkquality (numeric) #

Link quality (signal strength). Value can be found in the published state on the linkquality property. It’s not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.

Manual Home Assistant configuration #

Although Home Assistant integration through MQTT discovery is preferred, manual integration is possible with the following configuration:

lock:
  - platform: "mqtt"
    state_topic: true
    availability_topic: "zigbee2mqtt/bridge/state"
    command_topic: "zigbee2mqtt/<FRIENDLY_NAME>/set"
    value_template: "{{ value_json.child_lock }}"
    payload_lock: "LOCK"
    payload_unlock: "UNLOCK"
    state_locked: "LOCK"
    state_unlocked: "UNLOCK"
    command_topic_postfix: "child_lock"

switch:
  - platform: "mqtt"
    state_topic: true
    availability_topic: "zigbee2mqtt/bridge/state"
    payload_off: "OFF"
    payload_on: "ON"
    value_template: "{{ value_json.window_detection }}"
    command_topic: "zigbee2mqtt/<FRIENDLY_NAME>/set"
    command_topic_postfix: "window_detection"
    state_off: "OFF"
    state_on: "ON"
    icon: "mdi:window-open-variant"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.battery }}"
    unit_of_measurement: "%"
    device_class: "battery"

switch:
  - platform: "mqtt"
    state_topic: true
    availability_topic: "zigbee2mqtt/bridge/state"
    payload_off: "OFF"
    payload_on: "ON"
    value_template: "{{ value_json.valve_detection }}"
    command_topic: "zigbee2mqtt/<FRIENDLY_NAME>/set"
    command_topic_postfix: "valve_detection"
    state_off: "OFF"
    state_on: "ON"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.position }}"
    unit_of_measurement: "%"
    icon: "mdi:valve"

climate:
  - platform: "mqtt"
    availability_topic: "zigbee2mqtt/bridge/state"
    temperature_unit: "C"
    temp_step: 0.5
    min_temp: "5"
    max_temp: "30"
    current_temperature_topic: true
    current_temperature_template: "{{ value_json.local_temperature }}"
    mode_state_topic: true
    mode_state_template: "{{ value_json.system_mode }}"
    modes:
      - "off"
      - "auto"
      - "heat"
    mode_command_topic: true
    action_topic: true
    action_template: "{% set values = {'idle':'off','heat':'heating','cool':'cooling','fan only':'fan'} %}{{ values[value_json.running_state] }}"
    temperature_command_topic: "current_heating_setpoint"
    temperature_state_template: "{{ value_json.current_heating_setpoint }}"
    temperature_state_topic: true

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    value_template: "{{ value_json.linkquality }}"
    unit_of_measurement: "lqi"
    icon: "mdi:signal"
