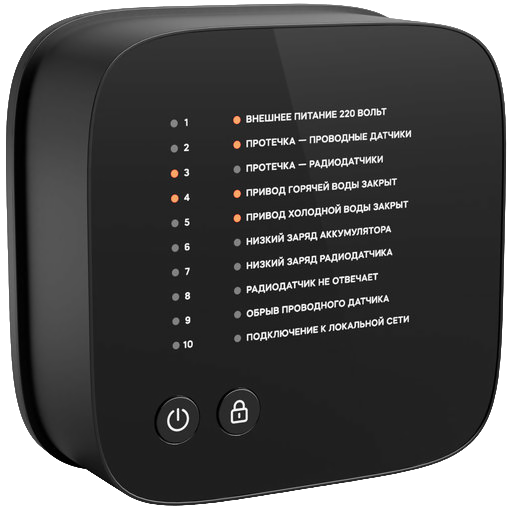

Ensystec Ensystec-Leak-Protect-Zigbee


Model	Ensystec-Leak-Protect-Zigbee
Vendor	Ensystec
Description	Leak protect controller with Zigbee module
Exposes	switch (state), water_leak, battery_low, power, alarm_reset, force_open, input_1_water_meter, input_1_divisor, input_1_multiplier, input_2_water_meter, input_2_divisor, input_2_multiplier, input_3_water_meter, input_3_divisor, input_3_multiplier, input_4_water_meter, input_4_divisor, input_4_multiplier, input_5_water_meter, input_5_divisor, input_5_multiplier, input_6_water_meter, input_6_divisor, input_6_multiplier, input_7_water_meter, input_7_divisor, input_7_multiplier, input_8_water_meter, input_8_divisor, input_8_multiplier, input_9_water_meter, input_9_divisor, input_9_multiplier, input_10_water_meter, input_10_divisor, input_10_multiplier, position_percent, electric_valve_connection_out1, electric_valve_connection_out2, input_1_config, input_2_config, input_3_config, input_4_config, input_5_config, input_6_config, input_7_config, input_8_config, input_9_config, input_10_config, input_1_leak_detect, input_2_leak_detect, input_3_leak_detect, input_4_leak_detect, input_5_leak_detect, input_6_leak_detect, input_7_leak_detect, input_8_leak_detect, input_9_leak_detect, input_10_leak_detect, input_1_wire_break_control, input_2_wire_break_control, input_3_wire_break_control, input_4_wire_break_control, input_5_wire_break_control, input_6_wire_break_control, input_7_wire_break_control, input_8_wire_break_control, input_9_wire_break_control, input_10_wire_break_control, channel_1_connection_control, channel_2_connection_control, channel_3_connection_control, channel_4_connection_control, channel_5_connection_control, channel_6_connection_control, channel_7_connection_control, channel_8_connection_control, channel_9_connection_control, channel_10_connection_control, channel_1_leak_detect, channel_2_leak_detect, channel_3_leak_detect, channel_4_leak_detect, channel_5_leak_detect, channel_6_leak_detect, channel_7_leak_detect, channel_8_leak_detect, channel_9_leak_detect, channel_10_leak_detect, channel_1_battery_low, channel_2_battery_low, channel_3_battery_low, channel_4_battery_low, channel_5_battery_low, channel_6_battery_low, channel_7_battery_low, channel_8_battery_low, channel_9_battery_low, channel_10_battery_low

OTA updates

This device supports OTA updates, for more information see OTA updates.

Options

How to use device type specific configuration

state_action: State actions will also be published as 'action' when true (default false). The value must be true or false

The current state of this switch is in the published state under the state_1 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_1": "ON"}, {"state_1": "OFF"} or {"state_1": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state_1": ""}.

On with timed off

When setting the state to ON, it might be possible to specify an automatic shutoff after a certain amount of time. To do this add an additional property on_time to the payload which is the time in seconds the state should remain on. Additionally an off_wait_time property can be added to the payload to specify the cooldown time in seconds when the switch will not answer to other on with timed off commands. Support depends on the switch firmware. Some devices might require both on_time and off_wait_time to work Examples : {"state" : "ON", "on_time": 300}, {"state" : "ON", "on_time": 300, "off_wait_time": 120}.

Water leak (binary)

Indicates whether the device detected a water leak. Value can be found in the published state on the water_leak property. It's not possible to read (/get) or write (/set) this value. If value equals true water leak is ON, if false OFF.

Battery low (binary, 1 endpoint)

Low battery. Value can be found in the published state on the battery_low_1 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"battery_low_1": ""}. It's not possible to write (/set) this value. If value equals Low battery low is ON, if Normal OFF.

Power (enum)

Power indicator. Value can be found in the published state on the power property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"power": ""}. It's not possible to write (/set) this value. The possible values are: unknown, mains (single phase), mains (3 phase), battery.

Alarm reset (enum)

Reset alarm. Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"alarm_reset": NEW_VALUE}. The possible values are: reset.

Force open (enum, 6 endpoint)

Force open electric valves. Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"force_open_6": NEW_VALUE}. The possible values are: Force open.

Input 1 water meter (numeric, 7 endpoint)

Water meter on input 1. Value can be found in the published state on the input_1_water_meter_7 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_1_water_meter_7": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_1_water_meter_7": NEW_VALUE}. The minimal value is 0 and the maximum value is 281474976710655. The unit of this value is m3.

Input 1 divisor (numeric, 7 endpoint)

Divisor of water meter 1. Value can be found in the published state on the input_1_divisor_7 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_1_divisor_7": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_1_divisor_7": NEW_VALUE}. The minimal value is 1 and the maximum value is 16777215.

Input 1 multiplier (numeric, 7 endpoint)

Multiplier of water meter 1. Value can be found in the published state on the input_1_multiplier_7 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_1_multiplier_7": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_1_multiplier_7": NEW_VALUE}. The minimal value is 1 and the maximum value is 16777215.

Input 2 water meter (numeric, 8 endpoint)

Water meter on input 2. Value can be found in the published state on the input_2_water_meter_8 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_2_water_meter_8": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_2_water_meter_8": NEW_VALUE}. The minimal value is 0 and the maximum value is 281474976710655. The unit of this value is m3.

Input 2 divisor (numeric, 8 endpoint)

Divisor of water meter 2. Value can be found in the published state on the input_2_divisor_8 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_2_divisor_8": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_2_divisor_8": NEW_VALUE}. The minimal value is 1 and the maximum value is 16777215.

Input 2 multiplier (numeric, 8 endpoint)

Multiplier of water meter 2. Value can be found in the published state on the input_2_multiplier_8 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_2_multiplier_8": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_2_multiplier_8": NEW_VALUE}. The minimal value is 1 and the maximum value is 16777215.

Input 3 water meter (numeric, 9 endpoint)

Water meter on input 3. Value can be found in the published state on the input_3_water_meter_9 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_3_water_meter_9": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_3_water_meter_9": NEW_VALUE}. The minimal value is 0 and the maximum value is 281474976710655. The unit of this value is m3.

Input 3 divisor (numeric, 9 endpoint)

Divisor of water meter 3. Value can be found in the published state on the input_3_divisor_9 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_3_divisor_9": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_3_divisor_9": NEW_VALUE}. The minimal value is 1 and the maximum value is 16777215.

Input 3 multiplier (numeric, 9 endpoint)

Multiplier of water meter 3. Value can be found in the published state on the input_3_multiplier_9 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_3_multiplier_9": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_3_multiplier_9": NEW_VALUE}. The minimal value is 1 and the maximum value is 16777215.

Input 4 water meter (numeric, 10 endpoint)

Water meter on input 4. Value can be found in the published state on the input_4_water_meter_10 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_4_water_meter_10": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_4_water_meter_10": NEW_VALUE}. The minimal value is 0 and the maximum value is 281474976710655. The unit of this value is m3.

Input 4 divisor (numeric, 10 endpoint)

Divisor of water meter 4. Value can be found in the published state on the input_4_divisor_10 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_4_divisor_10": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_4_divisor_10": NEW_VALUE}. The minimal value is 1 and the maximum value is 16777215.

Input 4 multiplier (numeric, 10 endpoint)

Multiplier of water meter 4. Value can be found in the published state on the input_4_multiplier_10 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_4_multiplier_10": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_4_multiplier_10": NEW_VALUE}. The minimal value is 1 and the maximum value is 16777215.

Input 5 water meter (numeric, 11 endpoint)

Water meter on input 5. Value can be found in the published state on the input_5_water_meter_11 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_5_water_meter_11": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_5_water_meter_11": NEW_VALUE}. The minimal value is 0 and the maximum value is 281474976710655. The unit of this value is m3.

Input 5 divisor (numeric, 11 endpoint)

Divisor of water meter 5. Value can be found in the published state on the input_5_divisor_11 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_5_divisor_11": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_5_divisor_11": NEW_VALUE}. The minimal value is 1 and the maximum value is 16777215.

Input 5 multiplier (numeric, 11 endpoint)

Multiplier of water meter 5. Value can be found in the published state on the input_5_multiplier_11 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_5_multiplier_11": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_5_multiplier_11": NEW_VALUE}. The minimal value is 1 and the maximum value is 16777215.

Input 6 water meter (numeric, 12 endpoint)

Water meter on input 6. Value can be found in the published state on the input_6_water_meter_12 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_6_water_meter_12": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_6_water_meter_12": NEW_VALUE}. The minimal value is 0 and the maximum value is 281474976710655. The unit of this value is m3.

Input 6 divisor (numeric, 12 endpoint)

Divisor of water meter 6. Value can be found in the published state on the input_6_divisor_12 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_6_divisor_12": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_6_divisor_12": NEW_VALUE}. The minimal value is 1 and the maximum value is 16777215.

Input 6 multiplier (numeric, 12 endpoint)

Multiplier of water meter 6. Value can be found in the published state on the input_6_multiplier_12 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_6_multiplier_12": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_6_multiplier_12": NEW_VALUE}. The minimal value is 1 and the maximum value is 16777215.

Input 7 water meter (numeric, 13 endpoint)

Water meter on input 7. Value can be found in the published state on the input_7_water_meter_13 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_7_water_meter_13": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_7_water_meter_13": NEW_VALUE}. The minimal value is 0 and the maximum value is 281474976710655. The unit of this value is m3.

Input 7 divisor (numeric, 13 endpoint)

Divisor of water meter 7. Value can be found in the published state on the input_7_divisor_13 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_7_divisor_13": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_7_divisor_13": NEW_VALUE}. The minimal value is 1 and the maximum value is 16777215.

Input 7 multiplier (numeric, 13 endpoint)

Multiplier of water meter 7. Value can be found in the published state on the input_7_multiplier_13 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_7_multiplier_13": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_7_multiplier_13": NEW_VALUE}. The minimal value is 1 and the maximum value is 16777215.

Input 8 water meter (numeric, 14 endpoint)

Water meter on input 8. Value can be found in the published state on the input_8_water_meter_14 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_8_water_meter_14": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_8_water_meter_14": NEW_VALUE}. The minimal value is 0 and the maximum value is 281474976710655. The unit of this value is m3.

Input 8 divisor (numeric, 14 endpoint)

Divisor of water meter 8. Value can be found in the published state on the input_8_divisor_14 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_8_divisor_14": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_8_divisor_14": NEW_VALUE}. The minimal value is 1 and the maximum value is 16777215.

Input 8 multiplier (numeric, 14 endpoint)

Multiplier of water meter 8. Value can be found in the published state on the input_8_multiplier_14 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_8_multiplier_14": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_8_multiplier_14": NEW_VALUE}. The minimal value is 1 and the maximum value is 16777215.

Input 9 water meter (numeric, 15 endpoint)

Water meter on input 9. Value can be found in the published state on the input_9_water_meter_15 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_9_water_meter_15": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_9_water_meter_15": NEW_VALUE}. The minimal value is 0 and the maximum value is 281474976710655. The unit of this value is m3.

Input 9 divisor (numeric, 15 endpoint)

Divisor of water meter 9. Value can be found in the published state on the input_9_divisor_15 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_9_divisor_15": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_9_divisor_15": NEW_VALUE}. The minimal value is 1 and the maximum value is 16777215.

Input 9 multiplier (numeric, 15 endpoint)

Multiplier of water meter 9. Value can be found in the published state on the input_9_multiplier_15 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_9_multiplier_15": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_9_multiplier_15": NEW_VALUE}. The minimal value is 1 and the maximum value is 16777215.

Input 10 water meter (numeric, 16 endpoint)

Water meter on input 10. Value can be found in the published state on the input_10_water_meter_16 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_10_water_meter_16": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_10_water_meter_16": NEW_VALUE}. The minimal value is 0 and the maximum value is 281474976710655. The unit of this value is m3.

Input 10 divisor (numeric, 16 endpoint)

Divisor of water meter 10. Value can be found in the published state on the input_10_divisor_16 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_10_divisor_16": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_10_divisor_16": NEW_VALUE}. The minimal value is 1 and the maximum value is 16777215.

Input 10 multiplier (numeric, 16 endpoint)

Multiplier of water meter 10. Value can be found in the published state on the input_10_multiplier_16 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_10_multiplier_16": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_10_multiplier_16": NEW_VALUE}. The minimal value is 1 and the maximum value is 16777215.

Switch (2 endpoint)

The current state of this switch is in the published state under the state_2 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_2": "ON"}, {"state_2": "OFF"} or {"state_2": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state_2": ""}.

On with timed off

Position percent (numeric, 2 endpoint)

Electric valve(-s) position on OUT1. Value can be found in the published state on the position_percent_2 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"position_percent_2": ""}. It's not possible to write (/set) this value. The unit of this value is %.

Electric valve connection out1 (binary, 2 endpoint)

Electric valve(-s) connected to OUT1. Value can be found in the published state on the electric_valve_connection_out1_2 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"electric_valve_connection_out1_2": ""}. It's not possible to write (/set) this value. If value equals Connected electric valve connection out1 is ON, if Not connected OFF.

Switch (3 endpoint)

The current state of this switch is in the published state under the state_3 property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_3": "ON"}, {"state_3": "OFF"} or {"state_3": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state_3": ""}.

On with timed off

Position percent (numeric, 3 endpoint)

Electric valve(-s) position on OUT2. Value can be found in the published state on the position_percent_3 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"position_percent_3": ""}. It's not possible to write (/set) this value. The unit of this value is %.

Electric valve connection out2 (binary, 3 endpoint)

Electric valve(-s) connected to OUT2. Value can be found in the published state on the electric_valve_connection_out2_3 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"electric_valve_connection_out2_3": ""}. It's not possible to write (/set) this value. If value equals Connected electric valve connection out2 is ON, if Not connected OFF.

Input 1 config (enum, 7 endpoint)

Input 1 configuration. Value can be found in the published state on the input_1_config_7 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_1_config_7": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_1_config_7": NEW_VALUE}. The possible values are: deactivated, sensor, meter.

Input 2 config (enum, 8 endpoint)

Input 2 configuration. Value can be found in the published state on the input_2_config_8 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_2_config_8": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_2_config_8": NEW_VALUE}. The possible values are: deactivated, sensor, meter.

Input 3 config (enum, 9 endpoint)

Input 3 configuration. Value can be found in the published state on the input_3_config_9 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_3_config_9": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_3_config_9": NEW_VALUE}. The possible values are: deactivated, sensor, meter.

Input 4 config (enum, 10 endpoint)

Input 4 configuration. Value can be found in the published state on the input_4_config_10 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_4_config_10": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_4_config_10": NEW_VALUE}. The possible values are: deactivated, sensor, meter.

Input 5 config (enum, 11 endpoint)

Input 5 configuration. Value can be found in the published state on the input_5_config_11 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_5_config_11": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_5_config_11": NEW_VALUE}. The possible values are: deactivated, sensor, meter.

Input 6 config (enum, 12 endpoint)

Input 6 configuration. Value can be found in the published state on the input_6_config_12 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_6_config_12": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_6_config_12": NEW_VALUE}. The possible values are: deactivated, sensor, meter.

Input 7 config (enum, 13 endpoint)

Input 7 configuration. Value can be found in the published state on the input_7_config_13 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_7_config_13": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_7_config_13": NEW_VALUE}. The possible values are: deactivated, sensor, meter.

Input 8 config (enum, 14 endpoint)

Input 8 configuration. Value can be found in the published state on the input_8_config_14 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_8_config_14": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_8_config_14": NEW_VALUE}. The possible values are: deactivated, sensor, meter.

Input 9 config (enum, 15 endpoint)

Input 9 configuration. Value can be found in the published state on the input_9_config_15 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_9_config_15": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_9_config_15": NEW_VALUE}. The possible values are: deactivated, sensor, meter.

Input 10 config (enum, 16 endpoint)

Input 10 configuration. Value can be found in the published state on the input_10_config_16 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_10_config_16": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_10_config_16": NEW_VALUE}. The possible values are: deactivated, sensor, meter.

Input 1 leak detect (binary, 7 endpoint)

Leak detection on input 1. Value can be found in the published state on the input_1_leak_detect_7 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_1_leak_detect_7": ""}. It's not possible to write (/set) this value. If value equals Leak input 1 leak detect is ON, if Dry OFF.

Input 2 leak detect (binary, 8 endpoint)

Leak detection on input 2. Value can be found in the published state on the input_2_leak_detect_8 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_2_leak_detect_8": ""}. It's not possible to write (/set) this value. If value equals Leak input 2 leak detect is ON, if Dry OFF.

Input 3 leak detect (binary, 9 endpoint)

Leak detection on input 3. Value can be found in the published state on the input_3_leak_detect_9 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_3_leak_detect_9": ""}. It's not possible to write (/set) this value. If value equals Leak input 3 leak detect is ON, if Dry OFF.

Input 4 leak detect (binary, 10 endpoint)

Leak detection on input 4. Value can be found in the published state on the input_4_leak_detect_10 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_4_leak_detect_10": ""}. It's not possible to write (/set) this value. If value equals Leak input 4 leak detect is ON, if Dry OFF.

Input 5 leak detect (binary, 11 endpoint)

Leak detection on input 5. Value can be found in the published state on the input_5_leak_detect_11 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_5_leak_detect_11": ""}. It's not possible to write (/set) this value. If value equals Leak input 5 leak detect is ON, if Dry OFF.

Input 6 leak detect (binary, 12 endpoint)

Leak detection on input 6. Value can be found in the published state on the input_6_leak_detect_12 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_6_leak_detect_12": ""}. It's not possible to write (/set) this value. If value equals Leak input 6 leak detect is ON, if Dry OFF.

Input 7 leak detect (binary, 13 endpoint)

Leak detection on input 7. Value can be found in the published state on the input_7_leak_detect_13 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_7_leak_detect_13": ""}. It's not possible to write (/set) this value. If value equals Leak input 7 leak detect is ON, if Dry OFF.

Input 8 leak detect (binary, 14 endpoint)

Leak detection on input 8. Value can be found in the published state on the input_8_leak_detect_14 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_8_leak_detect_14": ""}. It's not possible to write (/set) this value. If value equals Leak input 8 leak detect is ON, if Dry OFF.

Input 9 leak detect (binary, 15 endpoint)

Leak detection on input 9. Value can be found in the published state on the input_9_leak_detect_15 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_9_leak_detect_15": ""}. It's not possible to write (/set) this value. If value equals Leak input 9 leak detect is ON, if Dry OFF.

Input 10 leak detect (binary, 16 endpoint)

Leak detection on input 10. Value can be found in the published state on the input_10_leak_detect_16 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_10_leak_detect_16": ""}. It's not possible to write (/set) this value. If value equals Leak input 10 leak detect is ON, if Dry OFF.

Input 1 wire break control (binary, 7 endpoint)

Wire break control on input 1. Value can be found in the published state on the input_1_wire_break_control_7 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_1_wire_break_control_7": ""}. It's not possible to write (/set) this value. If value equals online input 1 wire break control is ON, if offline OFF.

Input 2 wire break control (binary, 8 endpoint)

Wire break control on input 2. Value can be found in the published state on the input_2_wire_break_control_8 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_2_wire_break_control_8": ""}. It's not possible to write (/set) this value. If value equals online input 2 wire break control is ON, if offline OFF.

Input 3 wire break control (binary, 9 endpoint)

Wire break control on input 3. Value can be found in the published state on the input_3_wire_break_control_9 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_3_wire_break_control_9": ""}. It's not possible to write (/set) this value. If value equals online input 3 wire break control is ON, if offline OFF.

Input 4 wire break control (binary, 10 endpoint)

Wire break control on input 4. Value can be found in the published state on the input_4_wire_break_control_10 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_4_wire_break_control_10": ""}. It's not possible to write (/set) this value. If value equals online input 4 wire break control is ON, if offline OFF.

Input 5 wire break control (binary, 11 endpoint)

Wire break control on input 5. Value can be found in the published state on the input_5_wire_break_control_11 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_5_wire_break_control_11": ""}. It's not possible to write (/set) this value. If value equals online input 5 wire break control is ON, if offline OFF.

Input 6 wire break control (binary, 12 endpoint)

Wire break control on input 6. Value can be found in the published state on the input_6_wire_break_control_12 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_6_wire_break_control_12": ""}. It's not possible to write (/set) this value. If value equals online input 6 wire break control is ON, if offline OFF.

Input 7 wire break control (binary, 13 endpoint)

Wire break control on input 7. Value can be found in the published state on the input_7_wire_break_control_13 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_7_wire_break_control_13": ""}. It's not possible to write (/set) this value. If value equals online input 7 wire break control is ON, if offline OFF.

Input 8 wire break control (binary, 14 endpoint)

Wire break control on input 8. Value can be found in the published state on the input_8_wire_break_control_14 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_8_wire_break_control_14": ""}. It's not possible to write (/set) this value. If value equals online input 8 wire break control is ON, if offline OFF.

Input 9 wire break control (binary, 15 endpoint)

Wire break control on input 9. Value can be found in the published state on the input_9_wire_break_control_15 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_9_wire_break_control_15": ""}. It's not possible to write (/set) this value. If value equals online input 9 wire break control is ON, if offline OFF.

Input 10 wire break control (binary, 16 endpoint)

Wire break control on input 10. Value can be found in the published state on the input_10_wire_break_control_16 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_10_wire_break_control_16": ""}. It's not possible to write (/set) this value. If value equals online input 10 wire break control is ON, if offline OFF.

Channel 1 connection control (binary, 17 endpoint)

Connection control on wireless channel 1. Value can be found in the published state on the channel_1_connection_control_17 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"channel_1_connection_control_17": ""}. It's not possible to write (/set) this value. If value equals online channel 1 connection control is ON, if offline OFF.

Channel 2 connection control (binary, 18 endpoint)

Connection control on wireless channel 2. Value can be found in the published state on the channel_2_connection_control_18 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"channel_2_connection_control_18": ""}. It's not possible to write (/set) this value. If value equals online channel 2 connection control is ON, if offline OFF.

Channel 3 connection control (binary, 19 endpoint)

Connection control on wireless channel 3. Value can be found in the published state on the channel_3_connection_control_19 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"channel_3_connection_control_19": ""}. It's not possible to write (/set) this value. If value equals online channel 3 connection control is ON, if offline OFF.

Channel 4 connection control (binary, 20 endpoint)

Connection control on wireless channel 4. Value can be found in the published state on the channel_4_connection_control_20 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"channel_4_connection_control_20": ""}. It's not possible to write (/set) this value. If value equals online channel 4 connection control is ON, if offline OFF.

Channel 5 connection control (binary, 21 endpoint)

Connection control on wireless channel 5. Value can be found in the published state on the channel_5_connection_control_21 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"channel_5_connection_control_21": ""}. It's not possible to write (/set) this value. If value equals online channel 5 connection control is ON, if offline OFF.

Channel 6 connection control (binary, 22 endpoint)

Connection control on wireless channel 6. Value can be found in the published state on the channel_6_connection_control_22 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"channel_6_connection_control_22": ""}. It's not possible to write (/set) this value. If value equals online channel 6 connection control is ON, if offline OFF.

Channel 7 connection control (binary, 23 endpoint)

Connection control on wireless channel 7. Value can be found in the published state on the channel_7_connection_control_23 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"channel_7_connection_control_23": ""}. It's not possible to write (/set) this value. If value equals online channel 7 connection control is ON, if offline OFF.

Channel 8 connection control (binary, 24 endpoint)

Connection control on wireless channel 8. Value can be found in the published state on the channel_8_connection_control_24 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"channel_8_connection_control_24": ""}. It's not possible to write (/set) this value. If value equals online channel 8 connection control is ON, if offline OFF.

Channel 9 connection control (binary, 25 endpoint)

Connection control on wireless channel 9. Value can be found in the published state on the channel_9_connection_control_25 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"channel_9_connection_control_25": ""}. It's not possible to write (/set) this value. If value equals online channel 9 connection control is ON, if offline OFF.

Channel 10 connection control (binary, 26 endpoint)

Connection control on wireless channel 10. Value can be found in the published state on the channel_10_connection_control_26 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"channel_10_connection_control_26": ""}. It's not possible to write (/set) this value. If value equals online channel 10 connection control is ON, if offline OFF.

Channel 1 leak detect (binary, 17 endpoint)

Leak detection on wireless channel 1. Value can be found in the published state on the channel_1_leak_detect_17 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"channel_1_leak_detect_17": ""}. It's not possible to write (/set) this value. If value equals Leak channel 1 leak detect is ON, if Dry OFF.

Channel 2 leak detect (binary, 18 endpoint)

Leak detection on wireless channel 2. Value can be found in the published state on the channel_2_leak_detect_18 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"channel_2_leak_detect_18": ""}. It's not possible to write (/set) this value. If value equals Leak channel 2 leak detect is ON, if Dry OFF.

Channel 3 leak detect (binary, 19 endpoint)

Leak detection on wireless channel 3. Value can be found in the published state on the channel_3_leak_detect_19 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"channel_3_leak_detect_19": ""}. It's not possible to write (/set) this value. If value equals Leak channel 3 leak detect is ON, if Dry OFF.

Channel 4 leak detect (binary, 20 endpoint)

Leak detection on wireless channel 4. Value can be found in the published state on the channel_4_leak_detect_20 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"channel_4_leak_detect_20": ""}. It's not possible to write (/set) this value. If value equals Leak channel 4 leak detect is ON, if Dry OFF.

Channel 5 leak detect (binary, 21 endpoint)

Leak detection on wireless channel 5. Value can be found in the published state on the channel_5_leak_detect_21 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"channel_5_leak_detect_21": ""}. It's not possible to write (/set) this value. If value equals Leak channel 5 leak detect is ON, if Dry OFF.

Channel 6 leak detect (binary, 22 endpoint)

Leak detection on wireless channel 6. Value can be found in the published state on the channel_6_leak_detect_22 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"channel_6_leak_detect_22": ""}. It's not possible to write (/set) this value. If value equals Leak channel 6 leak detect is ON, if Dry OFF.

Channel 7 leak detect (binary, 23 endpoint)

Leak detection on wireless channel 7. Value can be found in the published state on the channel_7_leak_detect_23 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"channel_7_leak_detect_23": ""}. It's not possible to write (/set) this value. If value equals Leak channel 7 leak detect is ON, if Dry OFF.

Channel 8 leak detect (binary, 24 endpoint)

Leak detection on wireless channel 8. Value can be found in the published state on the channel_8_leak_detect_24 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"channel_8_leak_detect_24": ""}. It's not possible to write (/set) this value. If value equals Leak channel 8 leak detect is ON, if Dry OFF.

Channel 9 leak detect (binary, 25 endpoint)

Leak detection on wireless channel 9. Value can be found in the published state on the channel_9_leak_detect_25 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"channel_9_leak_detect_25": ""}. It's not possible to write (/set) this value. If value equals Leak channel 9 leak detect is ON, if Dry OFF.

Channel 10 leak detect (binary, 26 endpoint)

Leak detection on wireless channel 10. Value can be found in the published state on the channel_10_leak_detect_26 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"channel_10_leak_detect_26": ""}. It's not possible to write (/set) this value. If value equals Leak channel 10 leak detect is ON, if Dry OFF.

Channel 1 battery low (binary, 17 endpoint)

Battery level of wireless sensor on channel 1. Value can be found in the published state on the channel_1_battery_low_17 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"channel_1_battery_low_17": ""}. It's not possible to write (/set) this value. If value equals Low channel 1 battery low is ON, if Normal OFF.

Channel 2 battery low (binary, 18 endpoint)

Battery level of wireless sensor on channel 2. Value can be found in the published state on the channel_2_battery_low_18 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"channel_2_battery_low_18": ""}. It's not possible to write (/set) this value. If value equals Low channel 2 battery low is ON, if Normal OFF.

Channel 3 battery low (binary, 19 endpoint)

Battery level of wireless sensor on channel 3. Value can be found in the published state on the channel_3_battery_low_19 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"channel_3_battery_low_19": ""}. It's not possible to write (/set) this value. If value equals Low channel 3 battery low is ON, if Normal OFF.

Channel 4 battery low (binary, 20 endpoint)

Battery level of wireless sensor on channel 4. Value can be found in the published state on the channel_4_battery_low_20 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"channel_4_battery_low_20": ""}. It's not possible to write (/set) this value. If value equals Low channel 4 battery low is ON, if Normal OFF.

Channel 5 battery low (binary, 21 endpoint)

Battery level of wireless sensor on channel 5. Value can be found in the published state on the channel_5_battery_low_21 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"channel_5_battery_low_21": ""}. It's not possible to write (/set) this value. If value equals Low channel 5 battery low is ON, if Normal OFF.

Channel 6 battery low (binary, 22 endpoint)

Battery level of wireless sensor on channel 6. Value can be found in the published state on the channel_6_battery_low_22 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"channel_6_battery_low_22": ""}. It's not possible to write (/set) this value. If value equals Low channel 6 battery low is ON, if Normal OFF.

Channel 7 battery low (binary, 23 endpoint)

Battery level of wireless sensor on channel 7. Value can be found in the published state on the channel_7_battery_low_23 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"channel_7_battery_low_23": ""}. It's not possible to write (/set) this value. If value equals Low channel 7 battery low is ON, if Normal OFF.

Channel 8 battery low (binary, 24 endpoint)

Battery level of wireless sensor on channel 8. Value can be found in the published state on the channel_8_battery_low_24 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"channel_8_battery_low_24": ""}. It's not possible to write (/set) this value. If value equals Low channel 8 battery low is ON, if Normal OFF.

Channel 9 battery low (binary, 25 endpoint)

Battery level of wireless sensor on channel 9. Value can be found in the published state on the channel_9_battery_low_25 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"channel_9_battery_low_25": ""}. It's not possible to write (/set) this value. If value equals Low channel 9 battery low is ON, if Normal OFF.

Channel 10 battery low (binary, 26 endpoint)

Battery level of wireless sensor on channel 10. Value can be found in the published state on the channel_10_battery_low_26 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"channel_10_battery_low_26": ""}. It's not possible to write (/set) this value. If value equals Low channel 10 battery low is ON, if Normal OFF.
