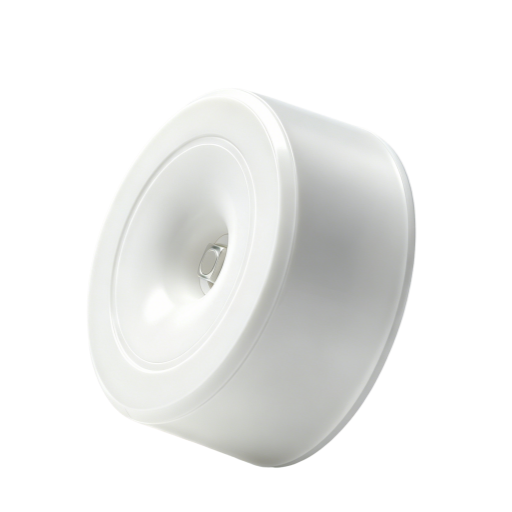

Excellux EZ-104UPT


Model	EZ-104UPT
Vendor	Excellux
Description	Contact sensor and vibration sensor
Exposes	uv_warning, pressure_warn, pressure_tend, temperature_warning, illuminance_warning, battery, temperature, illuminance, uv, uv_level, pressure, pressure_calibration, pressure_v0_set, pressure_v1_set, uv_calibration, sampling_interval, temperature_calibration, temperature_v0_set, temperature_v1_set, illuminance_v0, illuminance_v1, illuminance_calibration

Options

How to use device type specific configuration

temperature_calibration: Calibrates the temperature value (absolute offset), takes into effect on next report of device. The value must be a number.
temperature_precision: Number of digits after decimal point for temperature, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a maximum value of 3
illuminance_calibration: Calibrates the illuminance value (percentual offset), takes into effect on next report of device. The value must be a number.
pressure_calibration: Calibrates the pressure value (absolute offset), takes into effect on next report of device. The value must be a number.
pressure_precision: Number of digits after decimal point for pressure, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a maximum value of 3

UV Warning.Low < Moderate < High < Very High < Extreme. Value can be found in the published state on the uv_warning property. It's not possible to read (/get) or write (/set) this value. The possible values are: Low, Moderate, High, Very High, Extreme.

Pressure warn (enum)

none: pressure is between v0 and v1;low : pressure is lower than v0 and v1;high: pressure is higher than v0 and v1. Value can be found in the published state on the pressure_warn property. It's not possible to read (/get) or write (/set) this value. The possible values are: none, low, high.

Pressure tend (enum)

normal: Minor fluctuations in air pressure;Rising: Air pressure shows a steady upward trend;Falling: Air pressure shows a steady downward trend. Value can be found in the published state on the pressure_tend property. It's not possible to read (/get) or write (/set) this value. The possible values are: normal, rise, fall.

Temperature warning (enum)

Temperature warning. Low: temperature is lower than v0 and v1. High: temperature is higher than v0 and v1. Value can be found in the published state on the temperature_warning property. It's not possible to read (/get) or write (/set) this value. The possible values are: none, low, high.

Illuminance warning (enum)

Illuminance warning level,low:low,high:high,none. Value can be found in the published state on the illuminance_warning property. It's not possible to read (/get) or write (/set) this value. The possible values are: none, low, high.

Battery (numeric)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Temperature (numeric)

Measured temperature value. Value can be found in the published state on the temperature property. It's not possible to read (/get) or write (/set) this value. The unit of this value is °C.

Illuminance (numeric)

Measured illuminance. Value can be found in the published state on the illuminance property. It's not possible to read (/get) or write (/set) this value. The unit of this value is lx.

Uv (numeric)

uv Value. Value can be found in the published state on the uv property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 3300. The unit of this value is Volt.

Uv level (numeric)

uv level from 0.0 to 15.0. Value can be found in the published state on the uv_level property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 15.

Pressure (numeric)

pressure by sensor. Value can be found in the published state on the pressure property. It's not possible to read (/get) or write (/set) this value. The minimal value is 300 and the maximum value is 1100. The unit of this value is hPa.

Pressure calibration (numeric)

calibration pressure. Value can be found in the published state on the pressure_calibration property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"pressure_calibration": NEW_VALUE}. The minimal value is -10 and the maximum value is 10. The unit of this value is hPa.

Pressure v0 set (numeric)

set v0 pressure. Value can be found in the published state on the pressure_v0_set property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"pressure_v0_set": NEW_VALUE}. The minimal value is 300 and the maximum value is 1100. The unit of this value is hPa.

Pressure v1 set (numeric)

set v1 pressure. Value can be found in the published state on the pressure_v1_set property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"pressure_v1_set": NEW_VALUE}. The minimal value is 300 and the maximum value is 1100. The unit of this value is hPa.

Uv calibration (numeric)

calibration uv. Value can be found in the published state on the uv_calibration property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"uv_calibration": NEW_VALUE}. The minimal value is -1 and the maximum value is 1.

Sampling interval (numeric)

Sampling interval. Value can be found in the published state on the sampling_interval property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"sampling_interval": NEW_VALUE}. The minimal value is 5 and the maximum value is 1200. The unit of this value is s.

Temperature calibration (numeric)

Temperature calibration. Value can be found in the published state on the temperature_calibration property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"temperature_calibration": NEW_VALUE}. The minimal value is -2 and the maximum value is 2. The unit of this value is °C.

Temperature v0 set (numeric)

Temperature v0 threshold setting. Value can be found in the published state on the temperature_v0_set property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"temperature_v0_set": NEW_VALUE}. The minimal value is -40 and the maximum value is 85. The unit of this value is °C.

Temperature v1 set (numeric)

Temperature v1 threshold setting. Value can be found in the published state on the temperature_v1_set property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"temperature_v1_set": NEW_VALUE}. The minimal value is -40 and the maximum value is 85. The unit of this value is °C.

Illuminance v0 (numeric)

Illuminance v0 threshold setting. Value can be found in the published state on the illuminance_v0 property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"illuminance_v0": NEW_VALUE}. The minimal value is 0 and the maximum value is 10000. The unit of this value is lux.

Illuminance v1 (numeric)

Illuminance v1 threshold setting. Value can be found in the published state on the illuminance_v1 property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"illuminance_v1": NEW_VALUE}. The minimal value is 0 and the maximum value is 10000. The unit of this value is lux.

Illuminance calibration (numeric)

Illuminance calibration. Value can be found in the published state on the illuminance_calibration property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"illuminance_calibration": NEW_VALUE}. The minimal value is -1000 and the maximum value is 1000. The unit of this value is lux.
