ENGO ECB62-ZB
Model | ECB62-ZB |
Vendor | ENGO |
Description | Control box for underfloor heating system |
Exposes | pump_delay_time, zone_1, zone_2, zone_3, zone_4, zone_5, zone_6, zone_a, zone_b, boiler_state, pump_state, zone_1_linked, zone_2_linked, zone_3_linked, zone_4_linked, zone_5_linked, zone_6_linked, zone_a_name, zone_b_name, zone_1_name, zone_2_name, zone_3_name, zone_4_name, zone_5_name, zone_6_name |

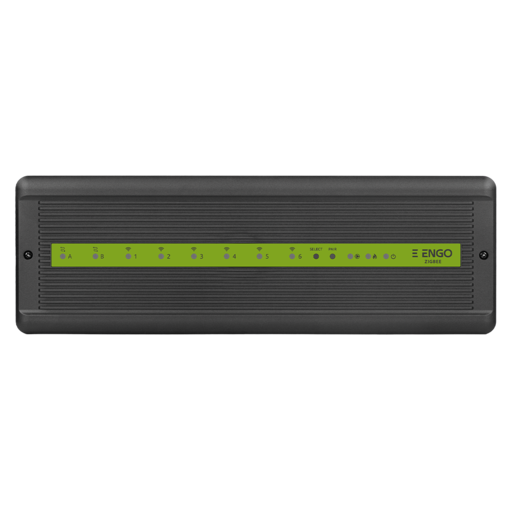

Picture | ![]() |
Exposes
Pump delay time (enum)
Pump shutdown delay. Value can be found in the published state on the pump_delay_time
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"pump_delay_time": NEW_VALUE}
. The possible values are: OFF
, 3_min
, 5_min
, 15_min
.
Zone 1 (binary)
Zigbee zone 1 heat demand. Value can be found in the published state on the zone_1
property. It's not possible to read (/get
) or write (/set
) this value. If value equals ON
zone 1 is ON, if OFF
OFF.
Zone 2 (binary)
Zigbee zone 2 heat demand. Value can be found in the published state on the zone_2
property. It's not possible to read (/get
) or write (/set
) this value. If value equals ON
zone 2 is ON, if OFF
OFF.
Zone 3 (binary)
Zigbee zone 3 heat demand. Value can be found in the published state on the zone_3
property. It's not possible to read (/get
) or write (/set
) this value. If value equals ON
zone 3 is ON, if OFF
OFF.
Zone 4 (binary)
Zigbee zone 4 heat demand. Value can be found in the published state on the zone_4
property. It's not possible to read (/get
) or write (/set
) this value. If value equals ON
zone 4 is ON, if OFF
OFF.
Zone 5 (binary)
Zigbee zone 5 heat demand. Value can be found in the published state on the zone_5
property. It's not possible to read (/get
) or write (/set
) this value. If value equals ON
zone 5 is ON, if OFF
OFF.
Zone 6 (binary)
Zigbee zone 6 heat demand. Value can be found in the published state on the zone_6
property. It's not possible to read (/get
) or write (/set
) this value. If value equals ON
zone 6 is ON, if OFF
OFF.
Zone a (binary)
Wired zone A heat demand. Value can be found in the published state on the zone_a
property. It's not possible to read (/get
) or write (/set
) this value. If value equals ON
zone a is ON, if OFF
OFF.
Zone b (binary)
Wired zone B heat demand. Value can be found in the published state on the zone_b
property. It's not possible to read (/get
) or write (/set
) this value. If value equals ON
zone b is ON, if OFF
OFF.
Boiler state (binary)
Boiler output. Value can be found in the published state on the boiler_state
property. It's not possible to read (/get
) or write (/set
) this value. If value equals ON
boiler state is ON, if OFF
OFF.
Pump state (binary)
Pump output. Value can be found in the published state on the pump_state
property. It's not possible to read (/get
) or write (/set
) this value. If value equals ON
pump state is ON, if OFF
OFF.
Zone 1 linked (binary)
Zone 1 thermostat connection status. Value can be found in the published state on the zone_1_linked
property. It's not possible to read (/get
) or write (/set
) this value. If value equals ON
zone 1 linked is ON, if OFF
OFF.
Zone 2 linked (binary)
Zone 2 thermostat connection status. Value can be found in the published state on the zone_2_linked
property. It's not possible to read (/get
) or write (/set
) this value. If value equals ON
zone 2 linked is ON, if OFF
OFF.
Zone 3 linked (binary)
Zone 3 thermostat connection status. Value can be found in the published state on the zone_3_linked
property. It's not possible to read (/get
) or write (/set
) this value. If value equals ON
zone 3 linked is ON, if OFF
OFF.
Zone 4 linked (binary)
Zone 4 thermostat connection status. Value can be found in the published state on the zone_4_linked
property. It's not possible to read (/get
) or write (/set
) this value. If value equals ON
zone 4 linked is ON, if OFF
OFF.
Zone 5 linked (binary)
Zone 5 thermostat connection status. Value can be found in the published state on the zone_5_linked
property. It's not possible to read (/get
) or write (/set
) this value. If value equals ON
zone 5 linked is ON, if OFF
OFF.
Zone 6 linked (binary)
Zone 6 thermostat connection status. Value can be found in the published state on the zone_6_linked
property. It's not possible to read (/get
) or write (/set
) this value. If value equals ON
zone 6 linked is ON, if OFF
OFF.
Zone a name (text)
Custom name for wired zone A. Value can be found in the published state on the zone_a_name
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"zone_a_name": NEW_VALUE}
.
Zone b name (text)
Custom name for wired zone B. Value can be found in the published state on the zone_b_name
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"zone_b_name": NEW_VALUE}
.
Zone 1 name (text)
Custom name for zigbee zone 1. Value can be found in the published state on the zone_1_name
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"zone_1_name": NEW_VALUE}
.
Zone 2 name (text)
Custom name for zigbee zone 2. Value can be found in the published state on the zone_2_name
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"zone_2_name": NEW_VALUE}
.
Zone 3 name (text)
Custom name for zigbee zone 3. Value can be found in the published state on the zone_3_name
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"zone_3_name": NEW_VALUE}
.
Zone 4 name (text)
Custom name for zigbee zone 4. Value can be found in the published state on the zone_4_name
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"zone_4_name": NEW_VALUE}
.
Zone 5 name (text)
Custom name for zigbee zone 5. Value can be found in the published state on the zone_5_name
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"zone_5_name": NEW_VALUE}
.
Zone 6 name (text)
Custom name for zigbee zone 6. Value can be found in the published state on the zone_6_name
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"zone_6_name": NEW_VALUE}
.
