Schneider Electric E8332SCN300ZB

ModelE8332SCN300ZB
VendorSchneider Electric
DescriptionWiser AvatarOn 2G curtain switch
Exposesindicator_luminance_level, indicator_color, indicator_mode, cover (state, position), transition, motor_type_1, motor_type_2, curtain_status_1, curtain_status_2

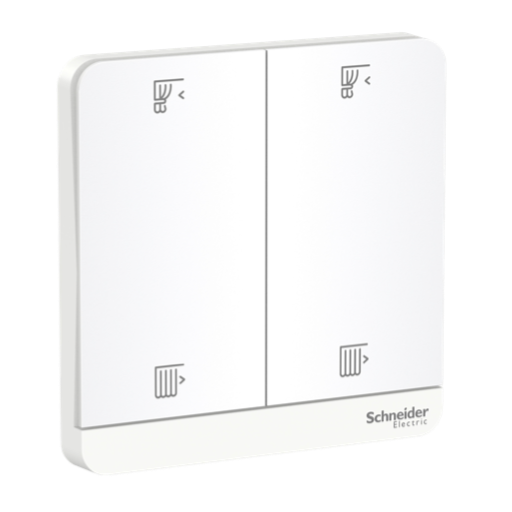

PictureSchneider Electric E8332SCN300ZB

Exposes

Indicator luminance level (enum)

Set indicator luminance Level. Value can be found in the published state on the indicator_luminance_level property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"indicator_luminance_level": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"indicator_luminance_level": NEW_VALUE}. The possible values are: 0, 20, 40, 60, 80, 100.

Indicator color (enum)

Set indicator color. Value can be found in the published state on the indicator_color property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"indicator_color": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"indicator_color": NEW_VALUE}. The possible values are: white, blue.

Indicator mode (enum)

Set indicator mode for switch. Value can be found in the published state on the indicator_mode property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"indicator_mode": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"indicator_mode": NEW_VALUE}. The possible values are: reverse_with_load, consistent_with_load, always_off, always_on.

Cover (l1 endpoint)

The current state of this cover is in the published state under the state_l1 property (value is OPEN or CLOSE). To control this cover publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l1": "OPEN"}, {"state_l1": "CLOSE"}, {"state_l1": "STOP"}. It's not possible to read (/get) this value. To change the position publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"position_l1": VALUE} where VALUE is a number between 0 and 100.

Cover (l2 endpoint)

The current state of this cover is in the published state under the state_l2 property (value is OPEN or CLOSE). To control this cover publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_l2": "OPEN"}, {"state_l2": "CLOSE"}, {"state_l2": "STOP"}. It's not possible to read (/get) this value. To change the position publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"position_l2": VALUE} where VALUE is a number between 0 and 100.

Transition (numeric, l1 endpoint)

Transition time in seconds. Value can be found in the published state on the transition_l1 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"transition_l1": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"transition_l1": NEW_VALUE}. The minimal value is 0 and the maximum value is 300. The unit of this value is s.

Transition (numeric, l2 endpoint)

Transition time in seconds. Value can be found in the published state on the transition_l2 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"transition_l2": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"transition_l2": NEW_VALUE}. The minimal value is 0 and the maximum value is 300. The unit of this value is s.

Motor type 1 (enum)

Set motor type for channel 1. Value can be found in the published state on the motor_type_1 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"motor_type_1": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"motor_type_1": NEW_VALUE}. The possible values are: ac_motor, pulse_motor.

Motor type 2 (enum)

Set motor type for channel 2. Value can be found in the published state on the motor_type_2 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"motor_type_2": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"motor_type_2": NEW_VALUE}. The possible values are: ac_motor, pulse_motor.

Curtain status 1 (enum)

Set curtain status for channel 1. Value can be found in the published state on the curtain_status_1 property. It's not possible to read (/get) or write (/set) this value. The possible values are: stop, opening, closing.

Curtain status 2 (enum)

Set curtain status for channel 2. Value can be found in the published state on the curtain_status_2 property. It's not possible to read (/get) or write (/set) this value. The possible values are: stop, opening, closing.
