ENGO E25-230
Model | E25-230 |
Vendor | ENGO |
Description | Smart thermostat |
Exposes | state, climate (system_mode, current_heating_setpoint, local_temperature, local_temperature_calibration, running_state, preset), control_algorithm, max_temperature, min_temperature, child_lock, valve_protection, relay_mode, backlight, frost_set |

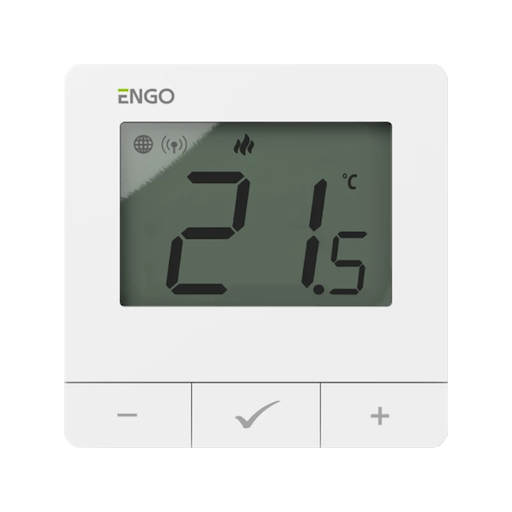

Picture | ![]() |
Exposes
State (binary)
Turn the thermostat ON/OFF. Value can be found in the published state on the state
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"state": NEW_VALUE}
. If value equals ON
state is ON, if OFF
OFF.
Climate
This climate device supports the following features: system_mode
, current_heating_setpoint
, local_temperature
, local_temperature_calibration
, running_state
, preset
.
current_heating_setpoint
: Temperature setpoint. To control publish a message to topiczigbee2mqtt/FRIENDLY_NAME/set
with payload{"current_heating_setpoint": VALUE}
whereVALUE
is the °C between5
and35
. Reading (/get
) this attribute is not possible.local_temperature
: Current temperature measured on the device (in °C). Reading (/get
) this attribute is not possible.system_mode
: Mode of this device. To control publish a message to topiczigbee2mqtt/FRIENDLY_NAME/set
with payload{"system_mode": VALUE}
whereVALUE
is one of:heat
,cool
. Reading (/get
) this attribute is not possible.preset
: Mode of this device (similar to system_mode). To control publish a message to topiczigbee2mqtt/FRIENDLY_NAME/set
with payload{"preset": VALUE}
whereVALUE
is one of:Manual
,Frost
. Reading (/get
) this attribute is not possible.running_state
: The current running state. Possible values are:idle
,heat
,cool
. Reading (/get
) this attribute is not possible.local_temperature_calibration
: Offset to add/subtract to the local temperature. To control publish a message to topiczigbee2mqtt/FRIENDLY_NAME/set
with payload{"local_temperature_calibration": VALUE}.
The minimal value is-3.5
and the maximum value is3.5
with a step size of0.5
.
Control algorithm (enum)
Sets the control algorithim of the thermostat. Value can be found in the published state on the control_algorithm
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"control_algorithm": NEW_VALUE}
. The possible values are: TPI_UFH
, TPI_RAD
, TPI_ELE
, HIS_04
, HIS_08
, HIS_12
, HIS_16
, HIS_20
, HIS_30
, HIS_40
.
Max temperature (numeric)
Maximum temperature. Value can be found in the published state on the max_temperature
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"max_temperature": NEW_VALUE}
. The minimal value is 5
and the maximum value is 35
. The unit of this value is °C
.
Min temperature (numeric)
Minimum temperature. Value can be found in the published state on the min_temperature
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"min_temperature": NEW_VALUE}
. The minimal value is 5
and the maximum value is 35
. The unit of this value is °C
.
Child lock (binary)
Enables/disables physical input on the device. Value can be found in the published state on the child_lock
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"child_lock": NEW_VALUE}
. If value equals LOCK
child lock is ON, if UNLOCK
OFF.
Valve protection (binary)
Enable valve protection. Value can be found in the published state on the valve_protection
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"valve_protection": NEW_VALUE}
. If value equals ON
valve protection is ON, if OFF
OFF.
Relay mode (enum)
Sets the internal relay function. Value can be found in the published state on the relay_mode
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"relay_mode": NEW_VALUE}
. The possible values are: NO
, NC
, OFF
.
Backlight (numeric)
Set the backlight brightness of the thermostat.. Value can be found in the published state on the backlight
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"backlight": NEW_VALUE}
. The minimal value is 0
and the maximum value is 100
. The unit of this value is %
.
Frost set (numeric)
Set the frost protection temperature.. Value can be found in the published state on the frost_set
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"frost_set": NEW_VALUE}
. The minimal value is 5
and the maximum value is 17
. The unit of this value is °C
.
