Lincukoo CZF02
Model | CZF02 |
Vendor | Lincukoo |
Description | Finger Robot |
Exposes | switch (state), mode, click_sustain_time, arm_down_percent, arm_up_percent, auto_adjustment, set_switch_state, battery |

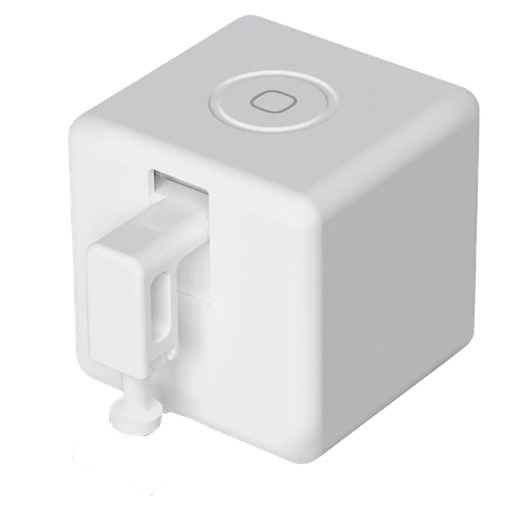

Picture | ![]() |
Exposes
Switch
The current state of this switch is in the published state under the state
property (value is ON
or OFF
). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"state": "ON"}
, {"state": "OFF"}
or {"state": "TOGGLE"}
. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"state": ""}
.
Mode (enum)
work mode of the finger robot. Value can be found in the published state on the mode
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"mode": NEW_VALUE}
. The possible values are: click
, long_press
.
Click sustain time (numeric)
keep times for click. Value can be found in the published state on the click_sustain_time
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"click_sustain_time": NEW_VALUE}
. The minimal value is 0.3
and the maximum value is 10
. The unit of this value is s
.
Arm down percent (numeric)
the position for arm moving down. Value can be found in the published state on the arm_down_percent
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"arm_down_percent": NEW_VALUE}
. The minimal value is 0
and the maximum value is 30
.
Arm up percent (numeric)
the position for arm moving up. Value can be found in the published state on the arm_up_percent
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"arm_up_percent": NEW_VALUE}
. The minimal value is 0
and the maximum value is 30
.
Auto adjustment (binary)
auto adjustment the arm position. Value can be found in the published state on the auto_adjustment
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"auto_adjustment": NEW_VALUE}
. If value equals ON
auto adjustment is ON, if OFF
OFF.
Set switch state (binary)
set the switch display status. Value can be found in the published state on the set_switch_state
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"set_switch_state": NEW_VALUE}
. If value equals ON
set switch state is ON, if OFF
OFF.
Battery (numeric)
Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery
property. It's not possible to read (/get
) or write (/set
) this value. The minimal value is 0
and the maximum value is 100
. The unit of this value is %
.
