Bosch BWA-1

ModelBWA-1
VendorBosch
DescriptionZigbee smart water leak detector
Exposeswater_leak, tamper, battery, battery_low, alarm_on_motion, linkquality

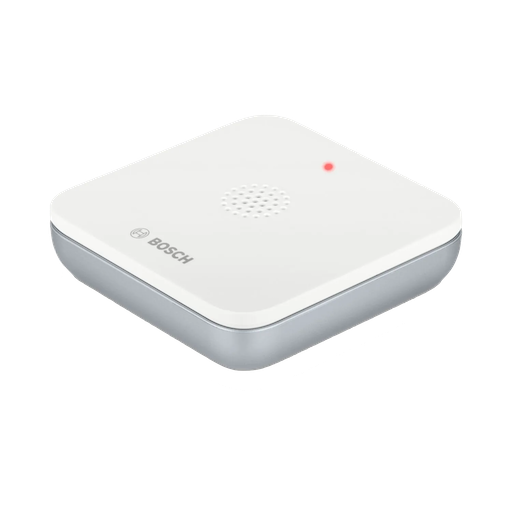

PictureBosch BWA-1

Notes

Pairing

To pair this device you have to install the device via its installation code. The installation code can be obtained by scanning the QR-code on the inside of the battery cover with your smartphone. Then get the device into pairing mode. In zigbee2mqtt navigate to "Settings" --> "Tools" and click on "Add install code". Paste the code you got from the QR-code and confirm by clicking "OK" which will get zigbee2mqtt into pairing mode automatically. Wait for your device to be joined.

Exposes

Water leak (binary)

Indicates whether the device detected a water leak. Value can be found in the published state on the water_leak property. It's not possible to read (/get) or write (/set) this value. If value equals true water leak is ON, if false OFF.

Tamper (binary)

Indicates whether the device is tampered. Value can be found in the published state on the tamper property. It's not possible to read (/get) or write (/set) this value. If value equals true tamper is ON, if false OFF.

Battery (numeric)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Battery low (binary)

Indicates if the battery of this device is almost empty. Value can be found in the published state on the battery_low property. It's not possible to read (/get) or write (/set) this value. If value equals true battery low is ON, if false OFF.

Alarm on motion (binary)

Enable/Disable sound alarm on motion. Value can be found in the published state on the alarm_on_motion property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"alarm_on_motion": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"alarm_on_motion": NEW_VALUE}. If value equals ON alarm on motion is ON, if OFF OFF.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
